Approvals
The Approvals module stores and queues DNS and DHCP actions made by selected User Groups, and sends those actions to a Pending Changes list for administrative review. Later, an administrator (or combination of administrators) can approve or reject these stored actions.
...
Info |
---|
Currently, Approvals is available only for DNS and DHCP related actions. If you are interested in providing feedback, a use case, or requests for future additions to the Approvals system, please contact feedback@6connect.comuse the feedback form or contact support to submit a request. |
Table of Contents |
---|

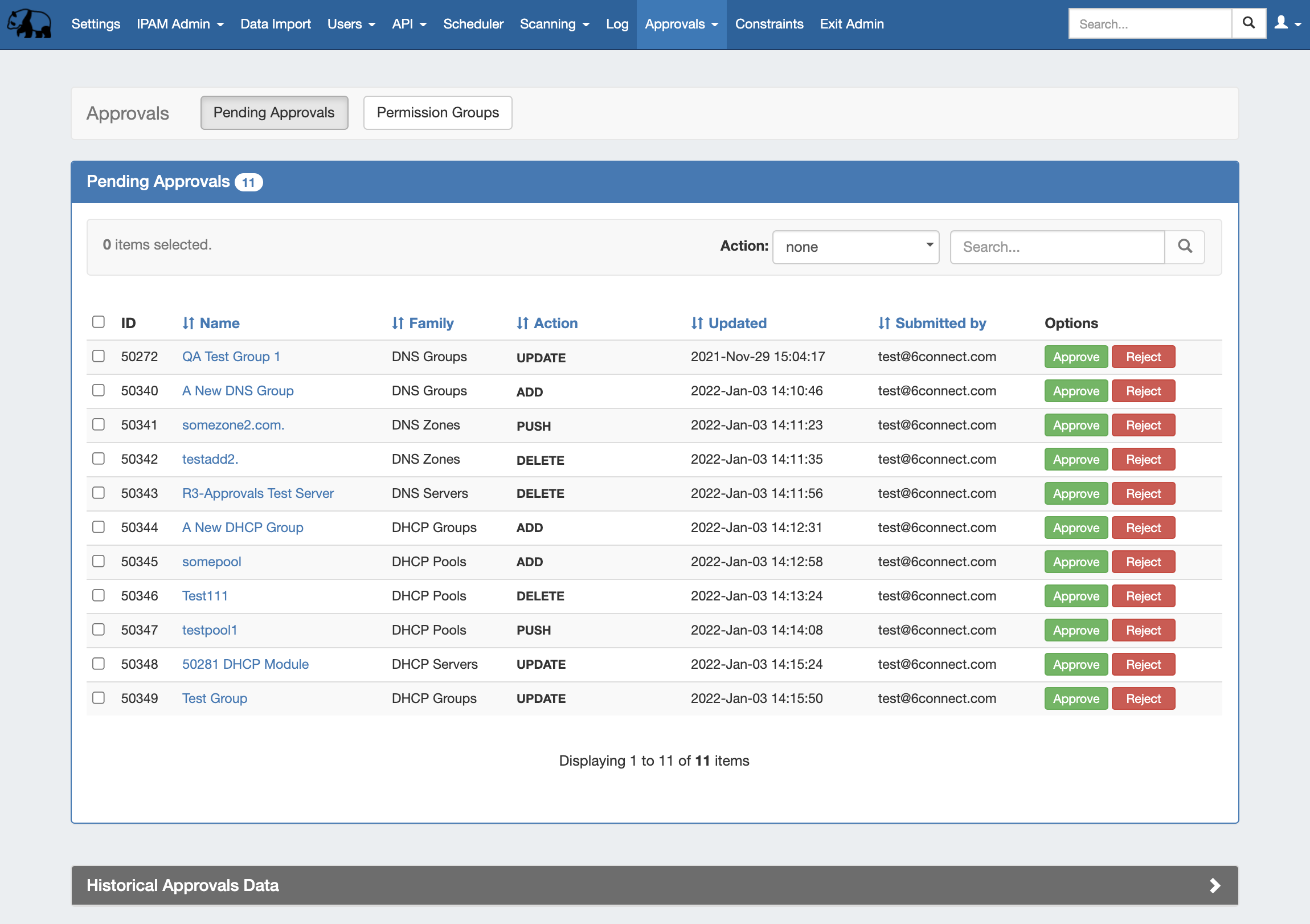

Approvals Tab - Overview
The ProVision Approvals system gives administrators an additional layer of flexibility and oversight to manage which changes are allowed to DNS or DHCP items by users.
...
Viewing requested changes and managing the group permission rules are both managed from the admin Approvalstab, under the Pending Approvals and Permission Groups sub tabs.
Approvals
...
Concepts - Before you Begin
...
The approvals system revolves around three primary concepts: Policies, Family-Action Types, and User Groups. An understanding of all three is necessary before setting up Approvals, and additional steps may need to be taken to ensure proper use of Approvals - such as creating additional User Groups.
Policies
When setting up Approvals Permission Groups, a policy will need to be selected to apply to the User Group / Family-Action Type combination selected. The set policy determines how the Approvals system handles an attempted change by a member of the associated User Group.
...
Ensure that for any group/action set with a "Submit" policy, another group is set with "Approve" for the same family-action type. Failure to provide groups for both submitter and approver may result in changes not being processed, due to not having a user assigned to approve the request.
Family-Action Types
In Approvals, the "Action" listed in the Pending Approval information or when setting Approval Permission Groups will be one of the following change types:
...
Each type of action can be performed on each family, so when setting up Approval Permission Groups you may choose to set the policy for the entire Family (ex: "All DNS Group actions"), Action (ex: "Add actions for all DNS Families"), or just a specific combination (ex: "Only DNS group Delete").
User Groups
Approvals uses ProVision User Groups to determine which users must have a change approved, denied, or can approve others' actions. Therefore, User Groups must be set up with the appropriate users and basic permissions under each group before using Approvals. For information on setting up User Groups and how the basic permissions structure works in ProVision, see Users & Permissions, Global Permissions, and Working with Users.
...
One Admin group and two DNS worker groups with different levels (high - low) of oversight needed, with restrictions set for particular Action types.
Group 1A (Admin) | Group 1B | Group 1C |
---|---|---|
Approval Group Settings:
|
Approval Group Settings:
|
Approval Group Settings:
|
Expand the following link to view example images of setting the assignments for all three groups:
...
Two Admin approval groups exist: One general Approver group that can approve any action type, and a second Group containing one person, Bob, who must sign off on any action taken under DNS Groups.
Group 2A (Admin Approvers) | Group 2B (Admin Approver Bob) | Group 2C |
---|---|---|
Approval Group Settings:
|
Approval Group Settings:
|
Approval Group Settings:
|
Approval Workflows
...
Approvals Workflow - Setup
The high level process to use when first setting up approvals is as follows:
Review User Groups and Approval Process Needs
...
Step 1 - Review Existing User Groups and Process Needs
When setting up Approvals for the first time, review the information in the previous section under "Approvals Fundamentals" to ensure a basic understanding of how Policies, Actions, and User Groups relate together in Approvals.
Then, take a few minutes to think about the following questions to get a better sense of how to use Approvals with your specific organization:
Review User Groups and Approval Process Needs
Expand |
---|
Who are the users that perform DNS / DHCP tasks, and at what level? Affects which users should be included in what User Groups What ProVision User Group(s) are they in? Approvals settings are applied to the User Group, not individuals - ensure users with similar oversight needs are grouped together What actions made by a certain user group should be automatically denied, if any? Assign the "Deny Action" policy to that Action/User Group combination What actions made by a certain user group should require oversight (admin approval / rejection)? Assign "Submit Action" to that Action/User Group combination Who is the admin / User Group that will make the final approval on a change? Ensure the approver(s) is in a User Group with the "Approve Action" policy assigned for the actions requiring approval Should any changes require multiple admins / User Groups to approve it in order to execute? A single user from every group assigned with "Approve Action" for the action must approve the action for it to succeed If two admins are required to both separately agree on a change, they should be under two separate User Groups assigned "Approve" What User Groups would need to receive email Approval Status notifications, and on what type of actions? Affects whether to enable notifications and set up the scheduler task to send the notifications, and to what User Groups. When enabled, all users of the relevant group(s) will receive the email(s) |
Once your User Groups are optimized for use with Approvals, you may want to write down a quick note on which Action Types and policies are planned for each group.
Step 2 - Add or Edit
...
Step 2 - Add or Edit ProVision User Groups
ProVision User Groups
From here, depending
...
on the answers to the questions in step 1, you may need to do one or more of the following from the Users tab:
- Edit existing User Groups to add or remove users, in order to combine users who will need similar action types approved.
- Verify the User Groups have appropriate CRUD permissions set to perform the action(s) to be approved (e.g, you may have previously removed "Create" permissions for a group, but if the intent is now for those users to have "Add" actions approved by an Admin, the submitter will need User Group resource "Create" permissions back!)
- Create new User Groups specifically for use with Approvals (recommended)
- Associate users with different, or additional User Groups (remember - users can be associated with multiple groups!)
For more information on adding and editing ProVision User Groups, see Users & Permissions, Global Permissions, and Working with Users.
...
...
Step 3 - Assign Approval Action Settings to Groups
From the Approvals Tab, navigate to the Permission Groups sub-tab.
Then, under the Groups page tab, find the ProVision User Group you want to assign a policy to and click "Assign".
Clicking the "Assign" button for a group brings up a checklist to select what policy to apply to the group for what Family and Actions (i.e. DNS Zone 'Add' or DNS Group 'Update'). Select either "Deny Action", "Submit Action", or "Approve Action" under Policy. Once you've selected a policy, you can "quick-select" all actions for a DNS Family (Severs, Groups, Zones, Records) by clicking the checkbox next to the family name, or only select individual action types for each Family.
When done, Click "Assign", and repeat as needed for other Policy types or User Groups.
Step 4 - Enable Notifications (Optional)
If using Approvals notifications, enable notifications for the appropriate Permissions Group(s)
...
.
From the Approvals Tab, navigate to the Permission Groups sub-tab Groups page tab.
Click on the group name for which you want to set notifications - the Group Permissions Detail page will provide additional information on the group's settings.
For any Family/Action that you want to enable notifications, click the checkbox under "Enable Notifications". All users of that group will get email notifications when a change of the selected type(s) are made.
Step 5 - Add Scheduler Task: "Approvals - Process Subscription"
If using Approvals notifications, set up a Scheduler task for "Approvals - Process Subscription"
...
.
The "Approvals - Process Subscription" task processes approval request events and handles the sending of notification emails to subscribed Approvals Groups - this task must be created and running on a regular interval in order for Approval Notification emails to be sent.
In order to receive the most up to date information in the Approval Notifications, is recommended to create this task with a run time of "every 5 minutes" and no end date.
For information on setting up Scheduler Tasks, see
...
Step 6 - Add Scheduler Task: "Approvals - Delete events older than 1 month"
Set up a Scheduler Task for "Approvals - Delete events older than 1 month", to occasionally clear out old and obsolete Approval request events
...
.
Step 6 - Add Scheduler Task: "Approvals - Delete events older than 1 month"
The "Approvals - Delete events older than 1 month" task deletes any Approvals history events older than 30 days.
It is recommended to set this task to run monthly with no end date, to clear out obsolete approvals items, reduce data storage space needs, and reduce approvals page load time.
For information on setting up Scheduler Tasks, see Scheduler.
Approvals - Daily Use
On a day-to-day basis after initial setup, an Approvals Workflow will be similar to the following (with "Submitter" as the user whose actions require approval, and "Approver" as the admin with the ability to approve/reject the change):
- Submitter makes an action (either by action type or DNS / DHCP Family) that requires approval
- Submitter is notified that their action is pending approval
The requested change is sent to the Approvals Tab Pending Approvals list, and also to the Resources Awaiting Approval module for the relevant area (the submitter may see their own submitted action under "Resources awaiting approval", but only Approvers can take approve/reject actions).
Expand title Pending Approvals List...

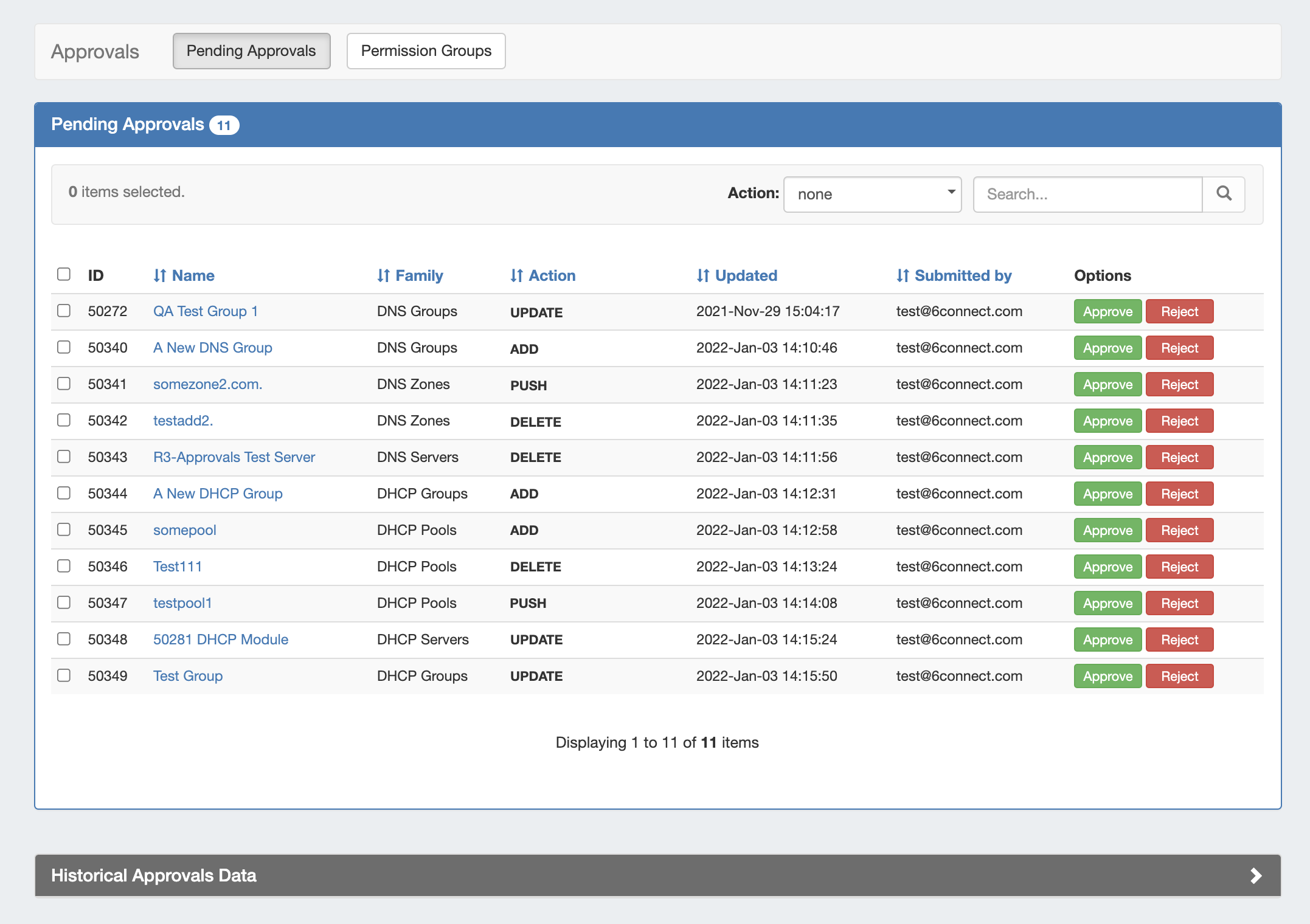

The Pending Approvals list is under the Approvals Tab. It shows Approvals events (change requests) for which the user has the ability to Approve or Deny - it does not show approval requests for all of ProVision or those for other users.
Expand title Resource Awaiting Approval Module... A "Resources Awaiting Approval" module will display in selected DNS / DHCP pages to Users with Admin / Approval permissions, if a change has been submitted on that page that is pending approval by the User's Approval Group.

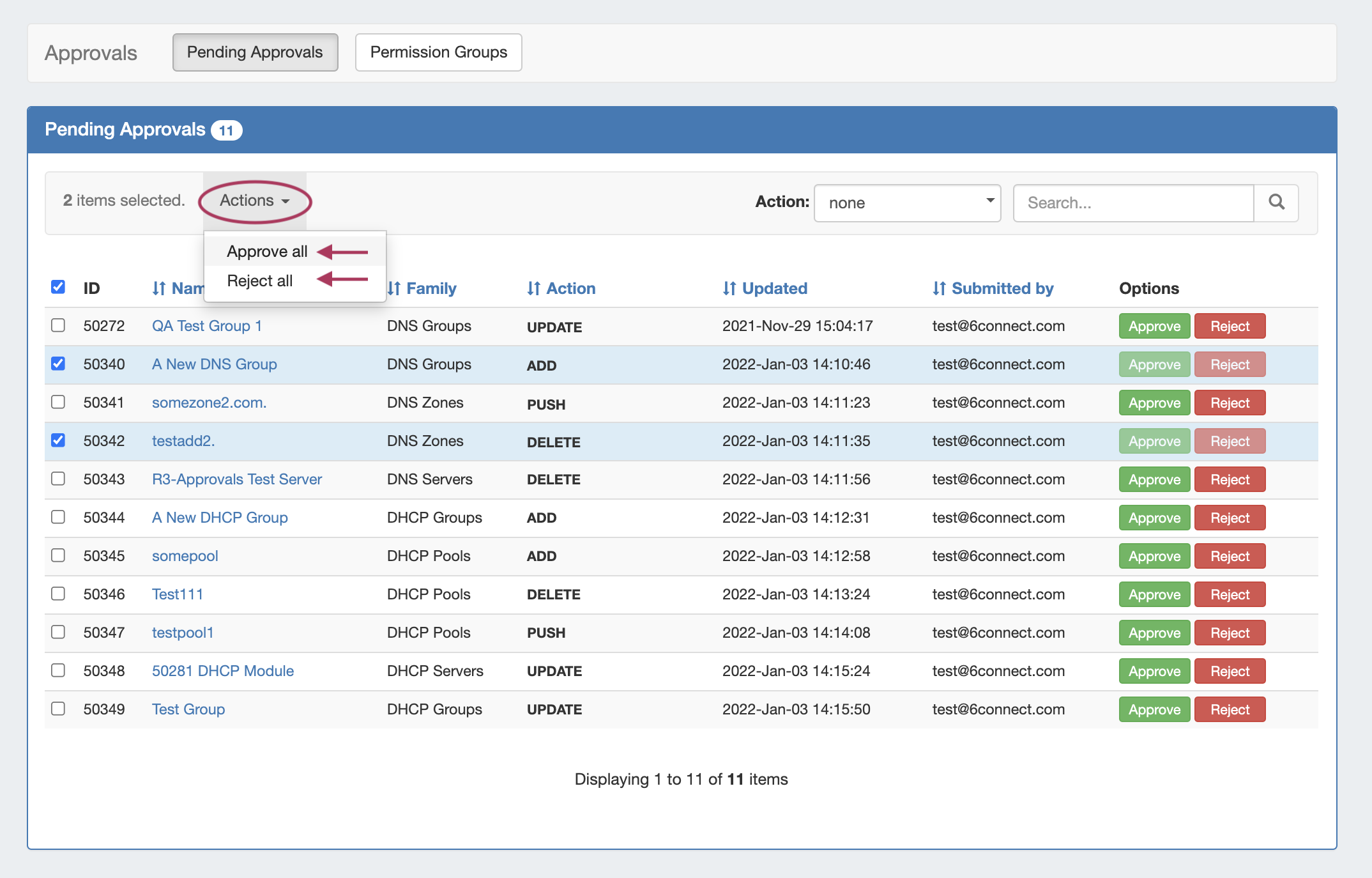

The Approver reviews the change in either their Approvals Tab Pending Approvals list, or the Resources Awaiting Approval module, and chooses to Approve or Reject the change. Events may be approved / rejected individually, or multiple events may be selected for bulk approval / rejection by selecting the desired checkmarks, expanding the "Actions" menu, then selecting either "Approval All" or "Reject All" for the selected events.
Expand - If Approved, and no other groups need to approve it, then the change executes and is saved. A status change notification email is sent, if enabled.
- If Approved, and is waiting approval from an additional User Group, the change continues to be held as Pending, until the other group responds (Both groups must "Approve" for the change to execute). A status change notification email is sent, if enabled, stating that the change is awaiting another Group.
- If Rejected, the change is not executed. A status change notification email is sent, if enabled.

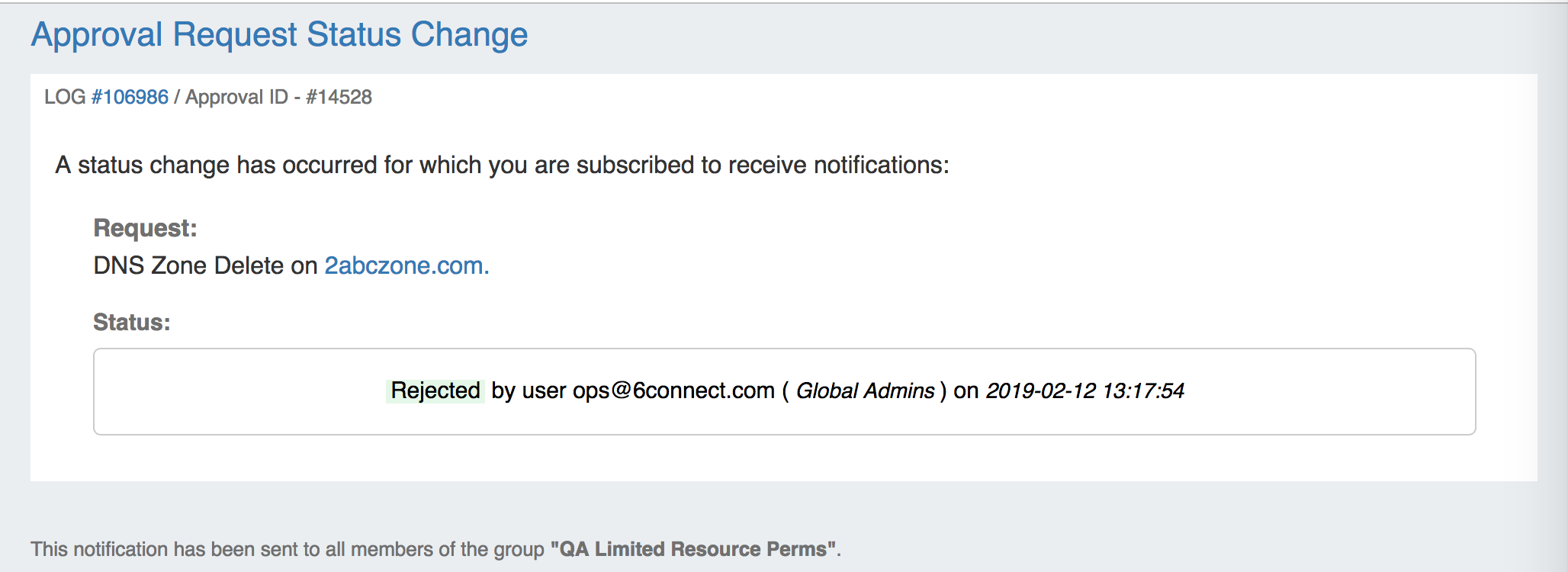

Example Status Change Notification Email:
Additional Information
See the following areas for more information on Approvals and using Approvals with DNS:
