ProVision 7.0.0

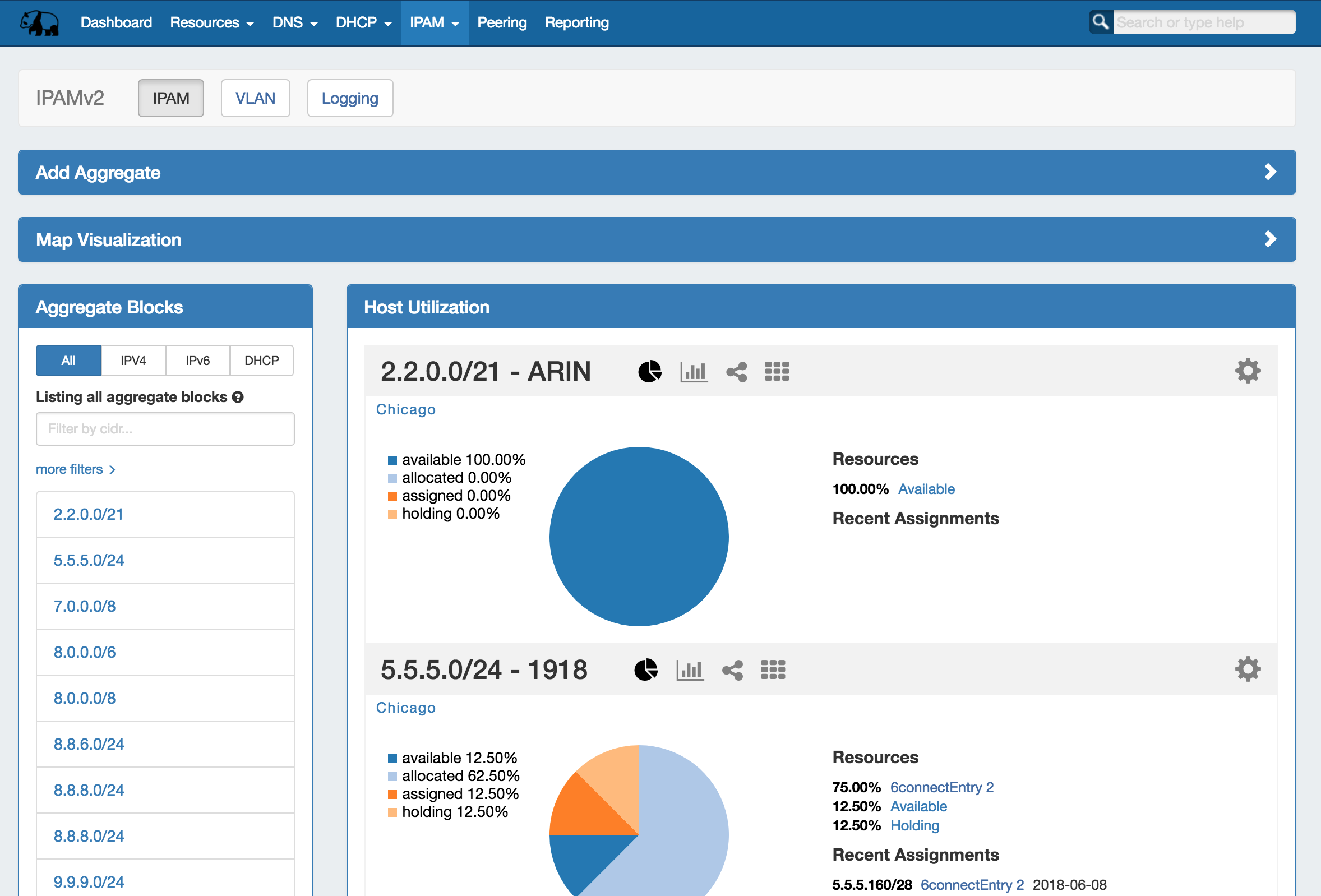

• Added Subtab navigation at the top of the page to switch between IPAM, VLAN, and Logging.
• Updated the UI for "Add Aggregate" - click on the expansion arrow to show the Add Aggregate form.
  Note: the "DHCP Aggregate" option has been removed, any IPAM block may now be used for DHCP Pools.



• Updated to a cleaner interface for  IPAM Maps - click on the expansion arrow to see the map, then click on the gear icon to adjust the map settings, such as selecting the map positioning, viewing aggregates, or to view recent assignments. As in previous versions, the IPAM map may be enabled or disabled in the IPAM Admin -> IPAM Configuration page.

• Updated interface
• Improved search filter  - accepts CIDR, Region, RIR

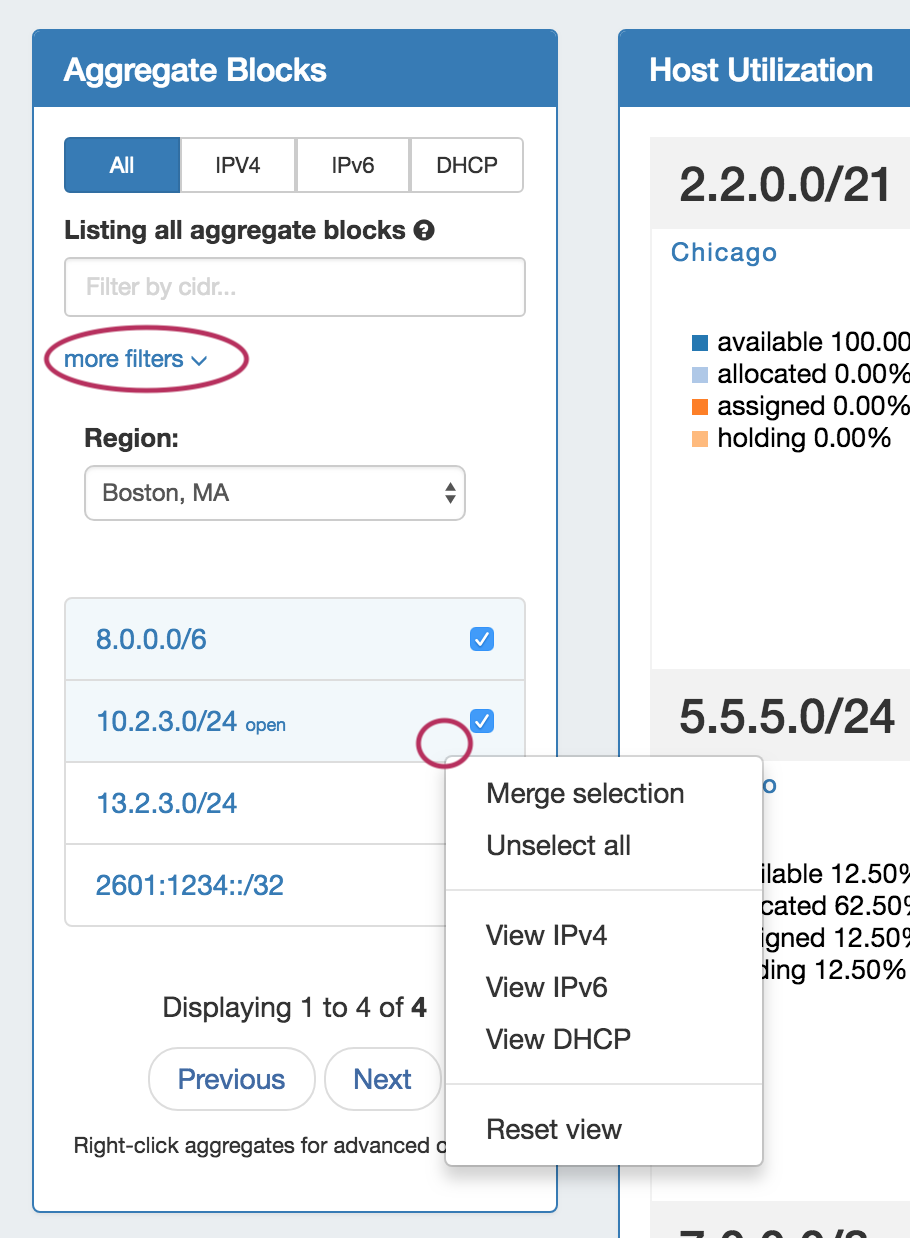

• Added filter by IPAM Regions under "more filters". To exit out of all filters, right click on the list and select "Reset View".

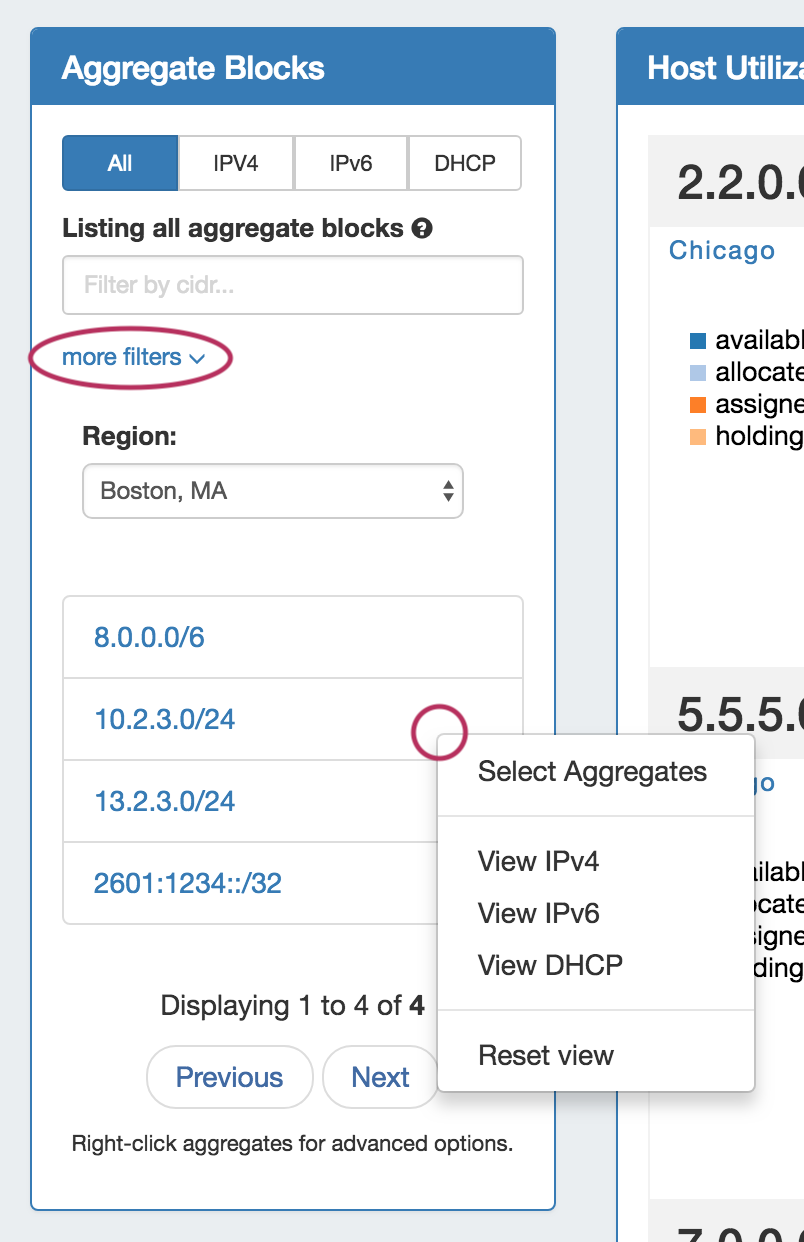

• • Top Level Aggregates may now be merged from the Aggregate Blocks List by right clicking on the list, clicking "Select Aggregates", clicking the check boxes for the two aggregates to merge, and then selecting "Merge Selection". ProVision will pre-test the merge, and if valid, give you the option to proceed. To Exit out of the selection prior to merging, select "Unselect All".
  • The IPAM Aggregate Blocks list now has pagination
  • A shortcut to IPAM Manage for an aggregate is provided by clicking the "open" link that appears when hovering over an aggregate block in the list.

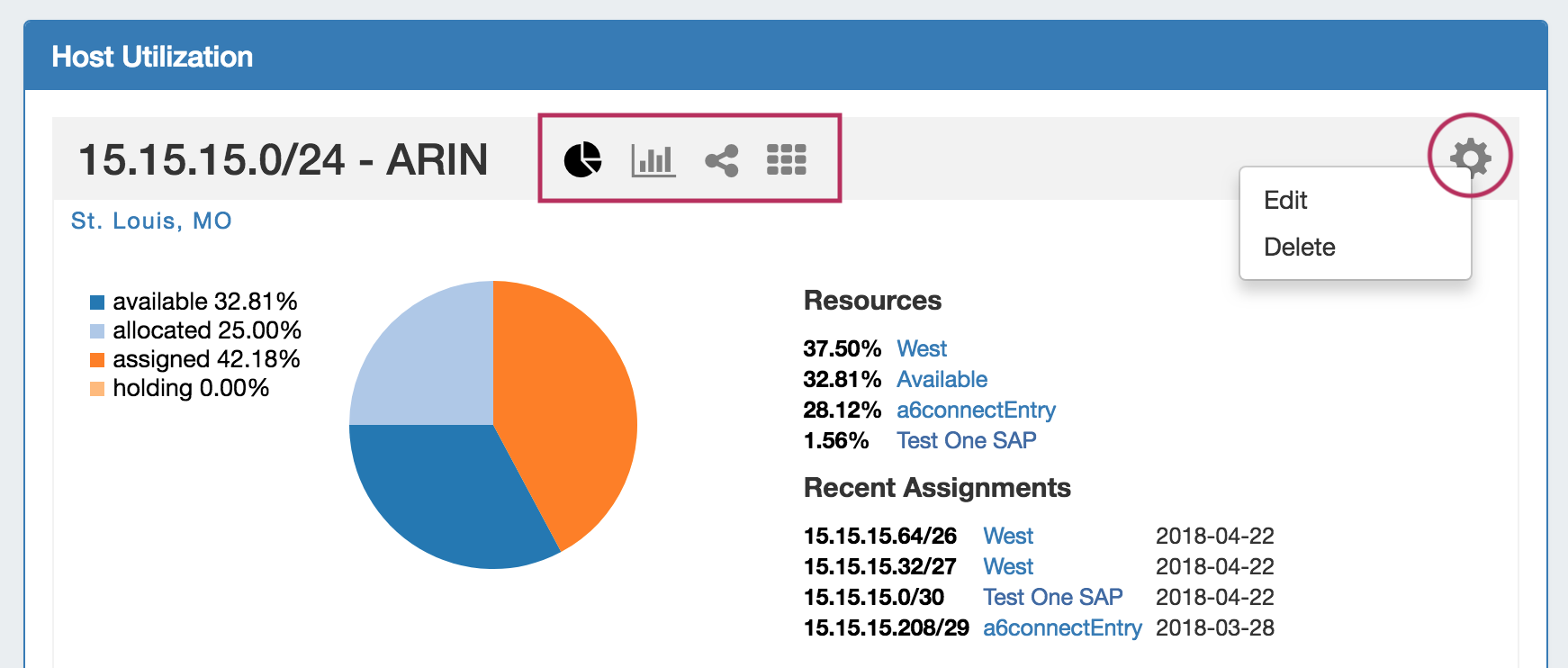

Simplified the Action menu (Gear Icon) to "Edit" (Open IPAM Manage for the Aggregate) and "Delete" (Delete Aggregate). Alerts, Auto-Split, and Clean up functions have been moved into the IPAM Manage page for the Aggregate.

Added More Charts! Four Charts are now available: Pie (standard), Bar (by resource), Tree (hierarchy), and Grid (Block detail). To access these, click on the chart icons in the Aggregate Header.

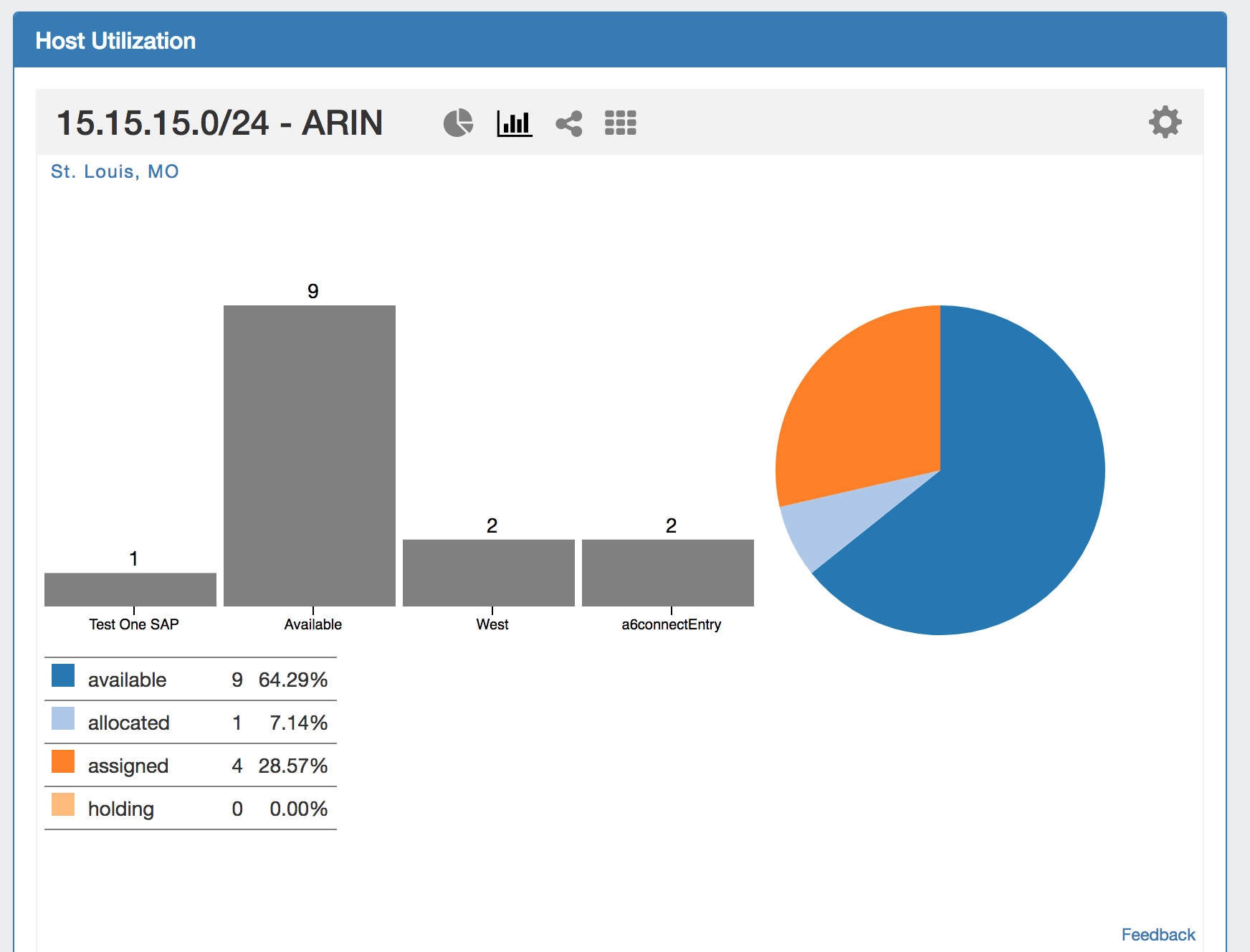

• Bar chart:

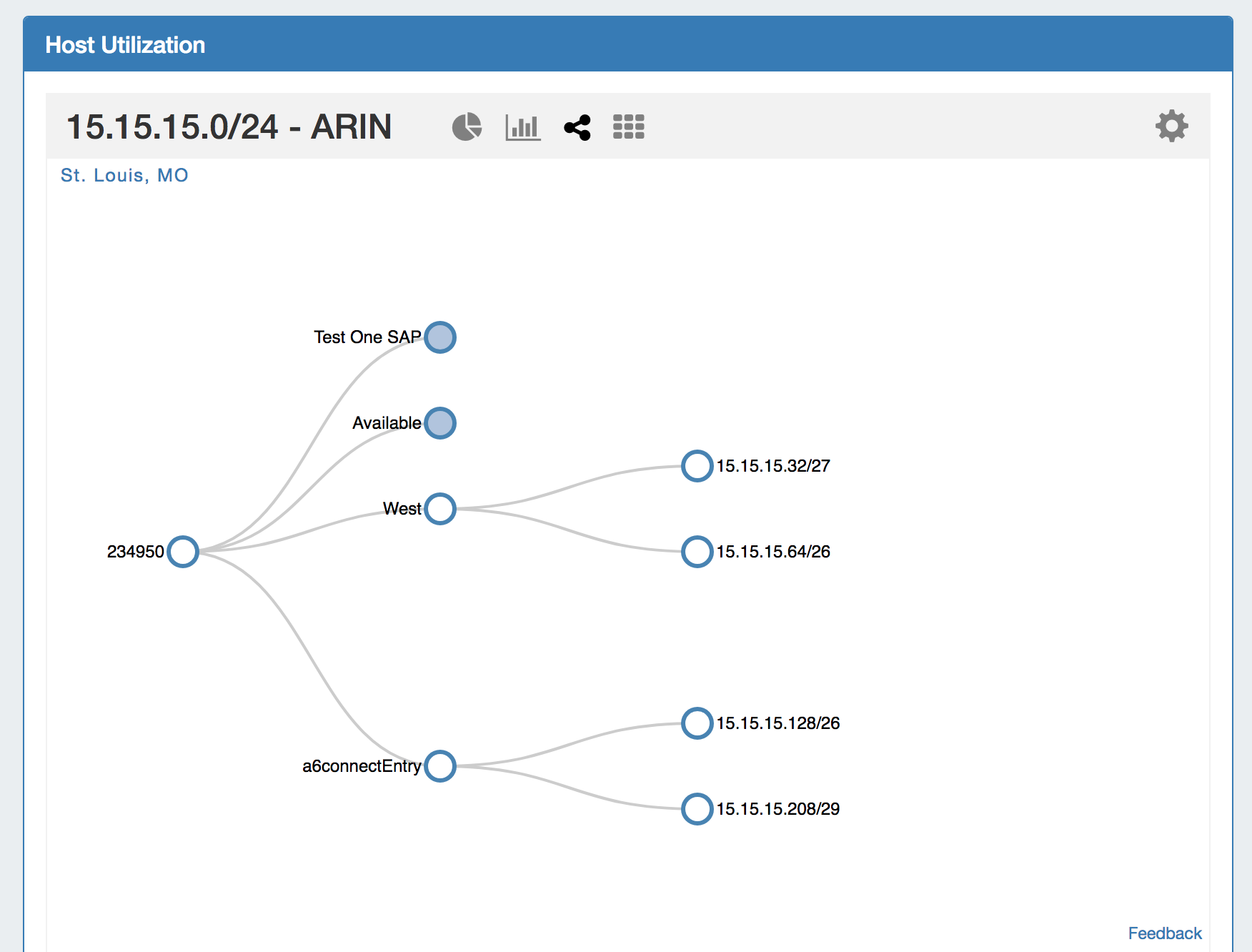

• Tree:

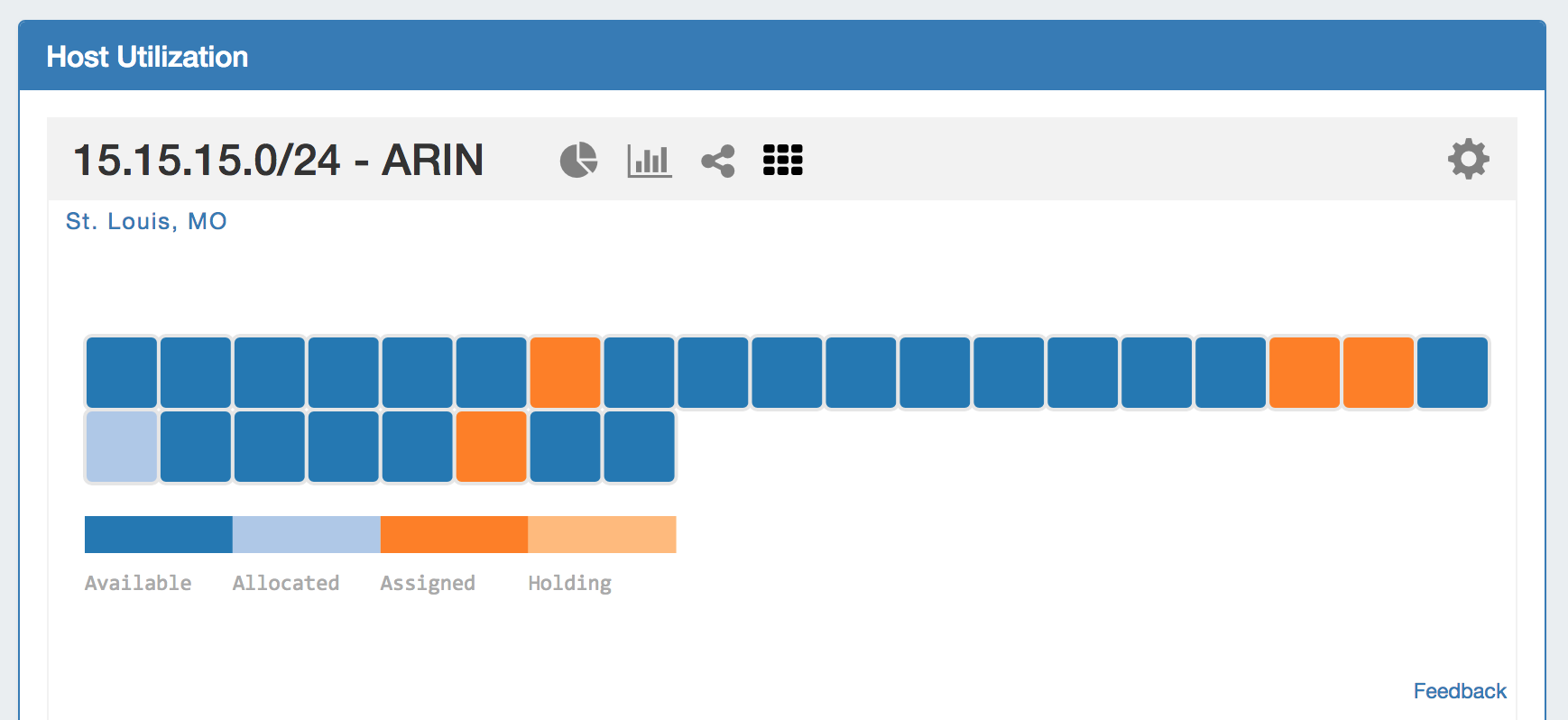

• Grid:


• Updated interface to support sortable columns, adjustable column widths, IPAMv2 column customizations, and user defined metadata fields.
• Moved modules for Auto-Split, Clean Up, and IPAM Alerts into the "Actions" flyout for IPAM Manage. To access, click the  "Actions" link in the Manage header.

• Updated IPAM Block multi-edit: Shift-click multiple blocks to select blocks, then right click within a selection to chose "Edit Selected Blocks", "Assign Selected Blocks", or "Unselect All". See "IPAM / VLAN Multi-Edit (IPAMv2)" on this page for additional details.
• Multi-edit now includes Domain, VLAN, and customized metadata fields. (CFR -109)
• Block Assign / Multi-Assign is now a searchable / filterable resource list.
• Override Holding has been removed (instead, use "Unassign Skip Holding", or empty the holding tank).
• RIR integration has had interface and back end operation improvements.
• Minor UI updates have been made to "IP Rules".

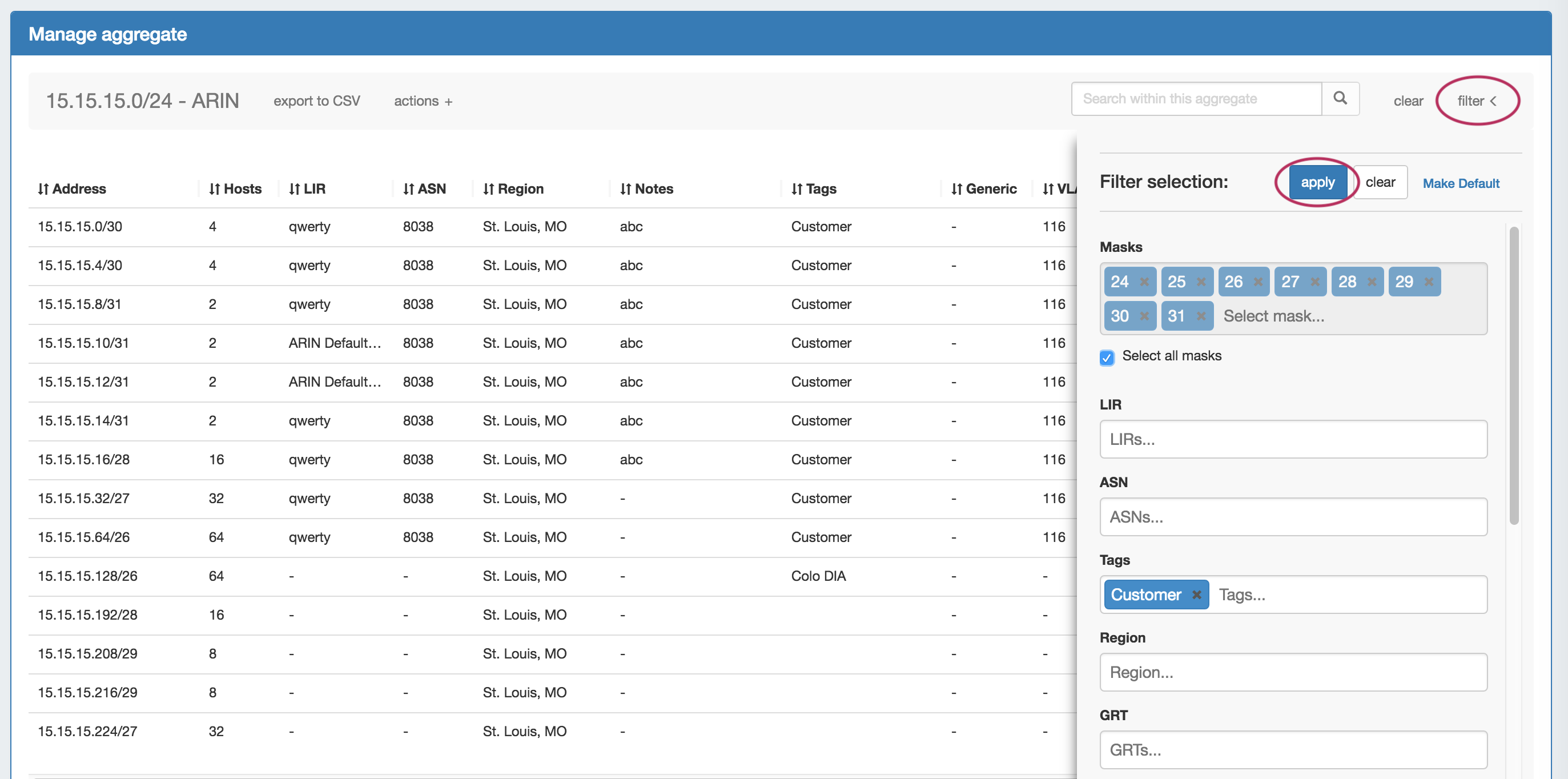

• Improved IPAM Filter options to be searchable fields, include user-created metadata fields, and added a "select all masks" option. To toggle the filter flyout, click the "filter" link at the top, right most section of the IPAM Manage aggregate header. Enter your filter criteria, and click "Apply". To reset, click "Clear". You may also choose to set the chosen filters to the default setting by clicking "Make Default". (CFR-120, CFR-122)

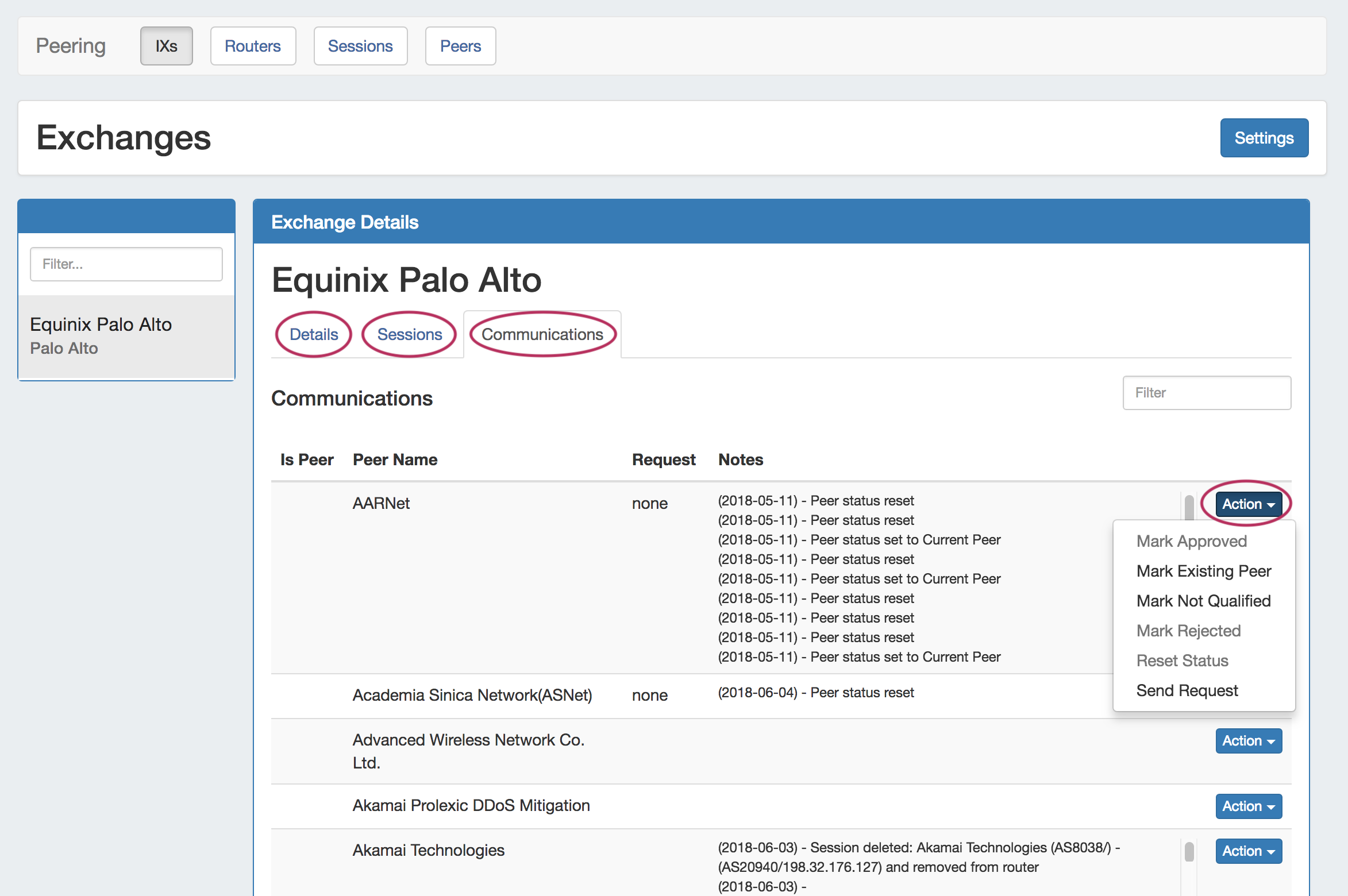

Clicking on an exchange in the exchange list will bring up an exchange details page, where Exchange Details, Session Details, and Exchange Communications may be viewed and managed.

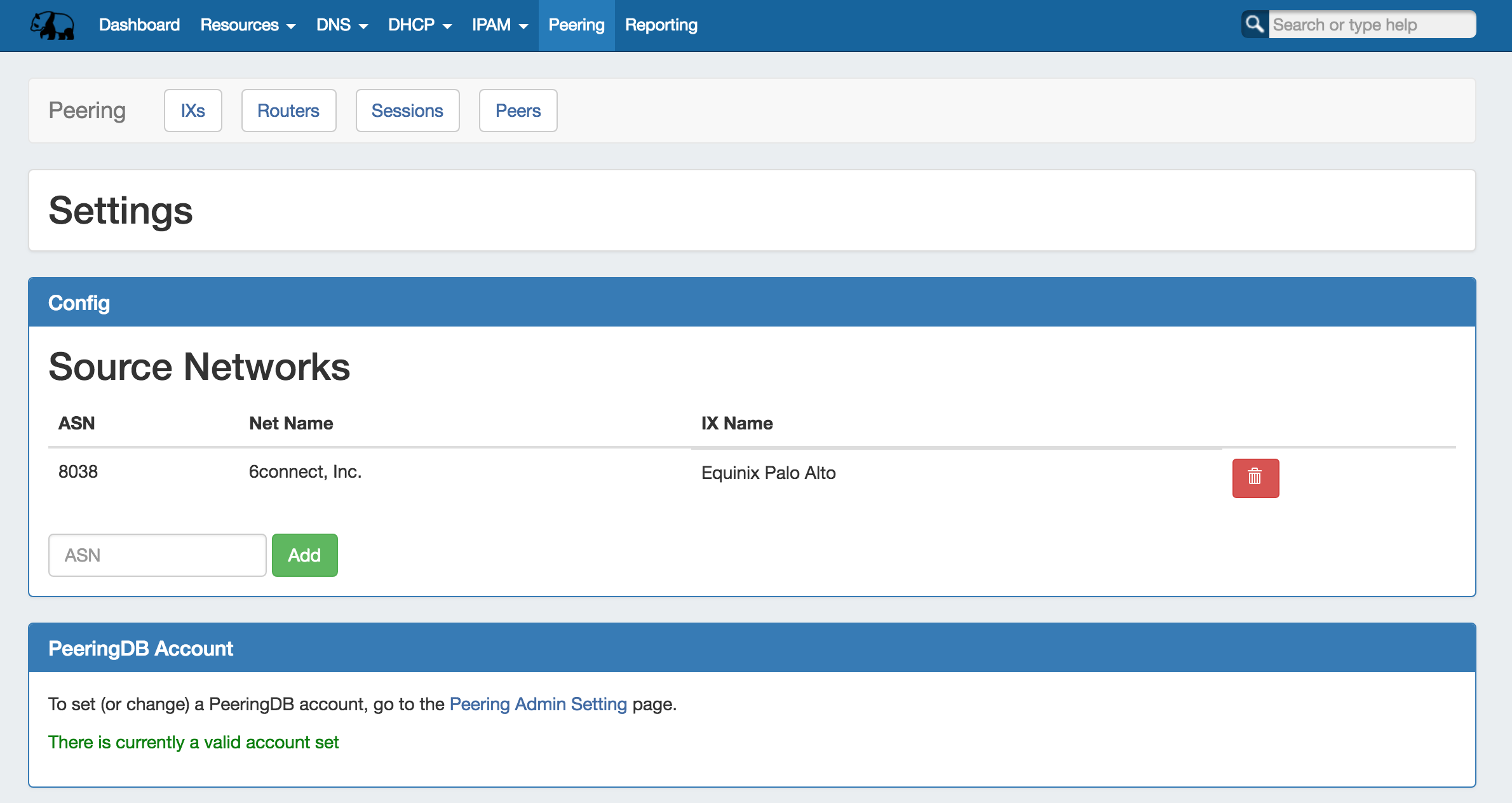

ASNs and PeeringDB account settings may be edited by clicking "Settings" in the IXs or Exchanges pages, or by going to ProVision's Admin settings page.

See Peering Exchanges for additional information.

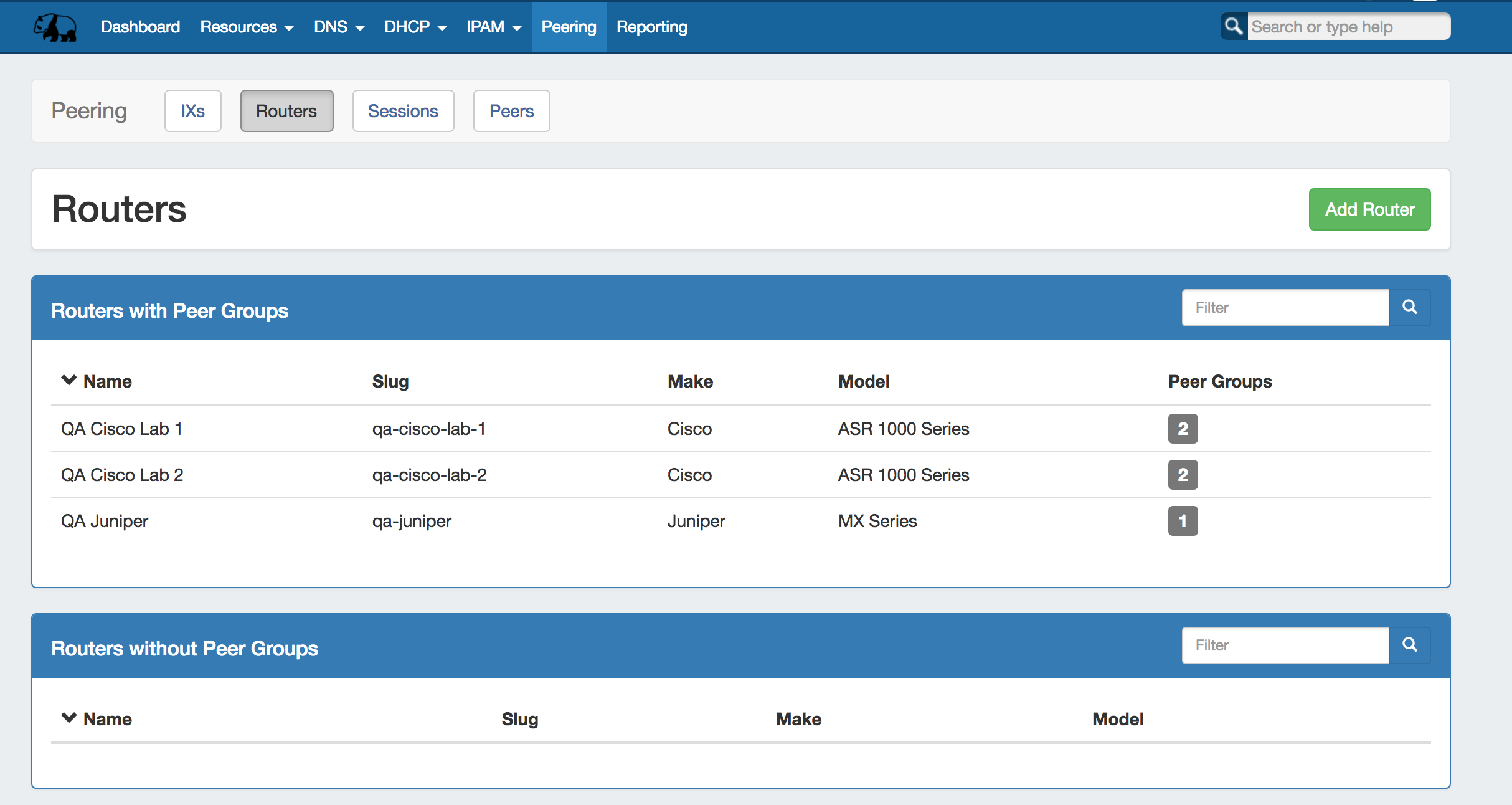

Add a new router by clicking the "Add Router" button, which will direct to a page to input the router details.

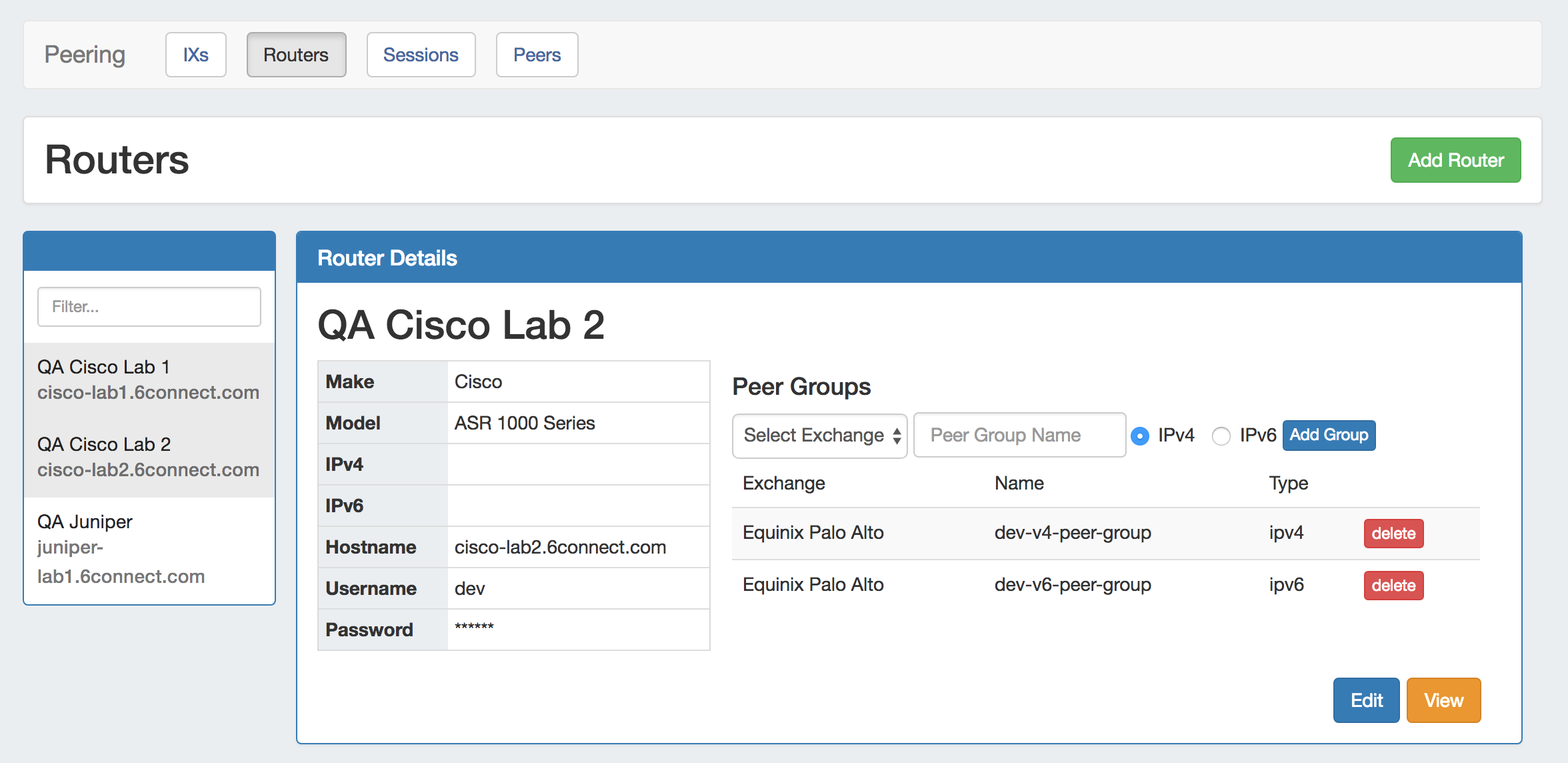

Clicking on a router entry in the router list will open the router details page.

From here, routers may be added as well, or you can use the filterable list in the left sidebar to select a router to view.

The router details area gives basic router information, which you may edit via the "Edit" button, and Peer Group management options.

See Peering Routers for additional information.

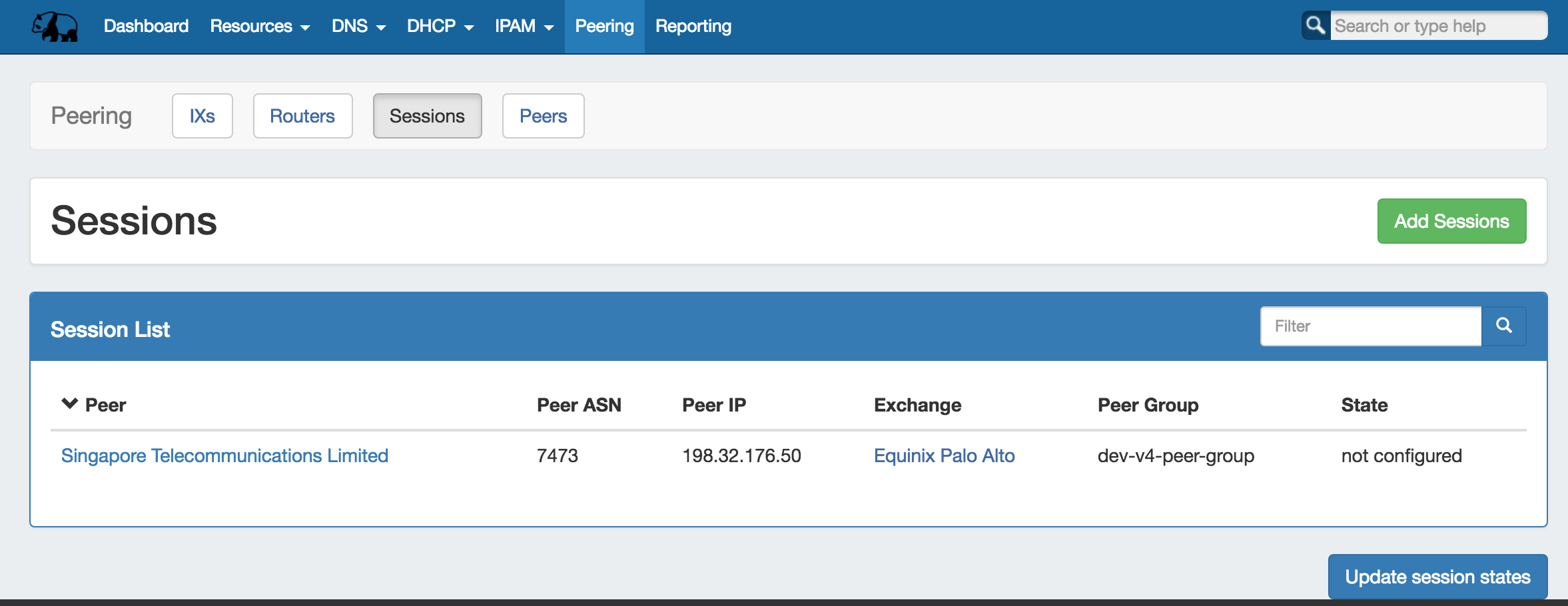

Add a new session by clicking the "Add Session" button, which will direct to a page to input the session details.

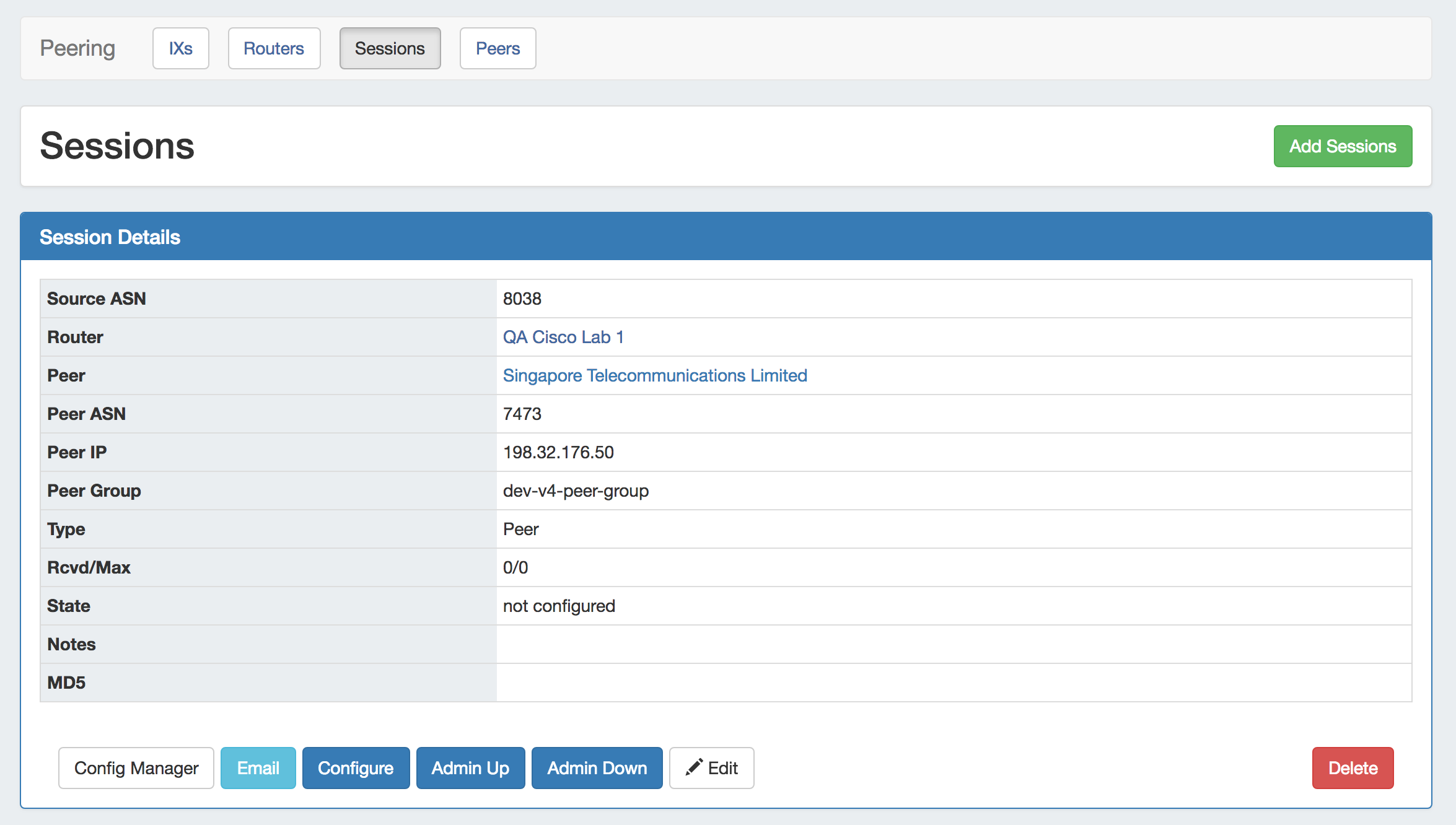

Clicking on a Session entry in the list will open the Session details page.

From here, new session may be created, but it is primarily for session management. The Session may be manually configured via "Config Manager", or automatically via "Configure".

"Email" opens an Email communications form, with data automatically generated from PeeringDB. Other available tasks include Admin Up/Down, Edit, and Delete session.

See Peering Sessions for additional information.

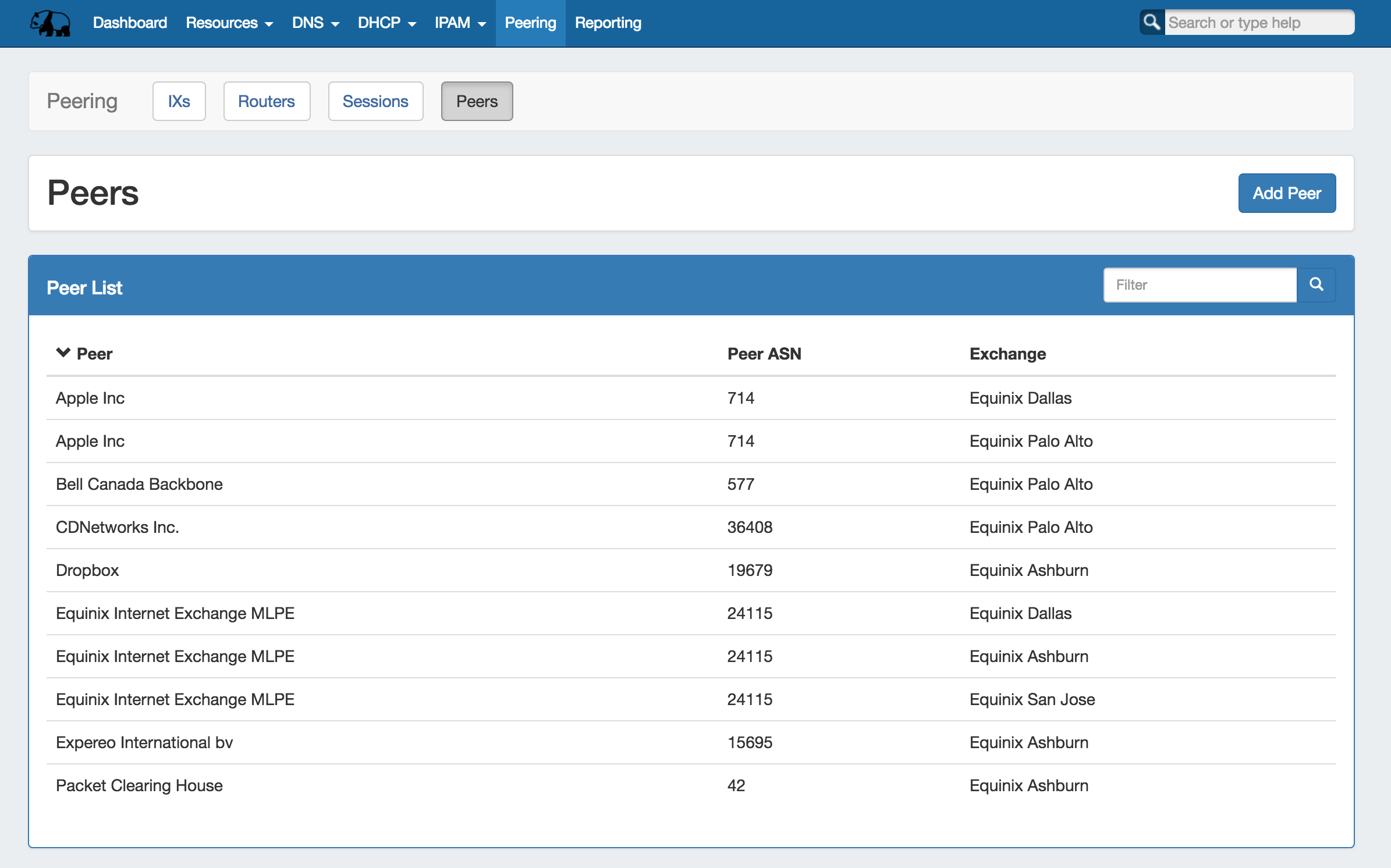

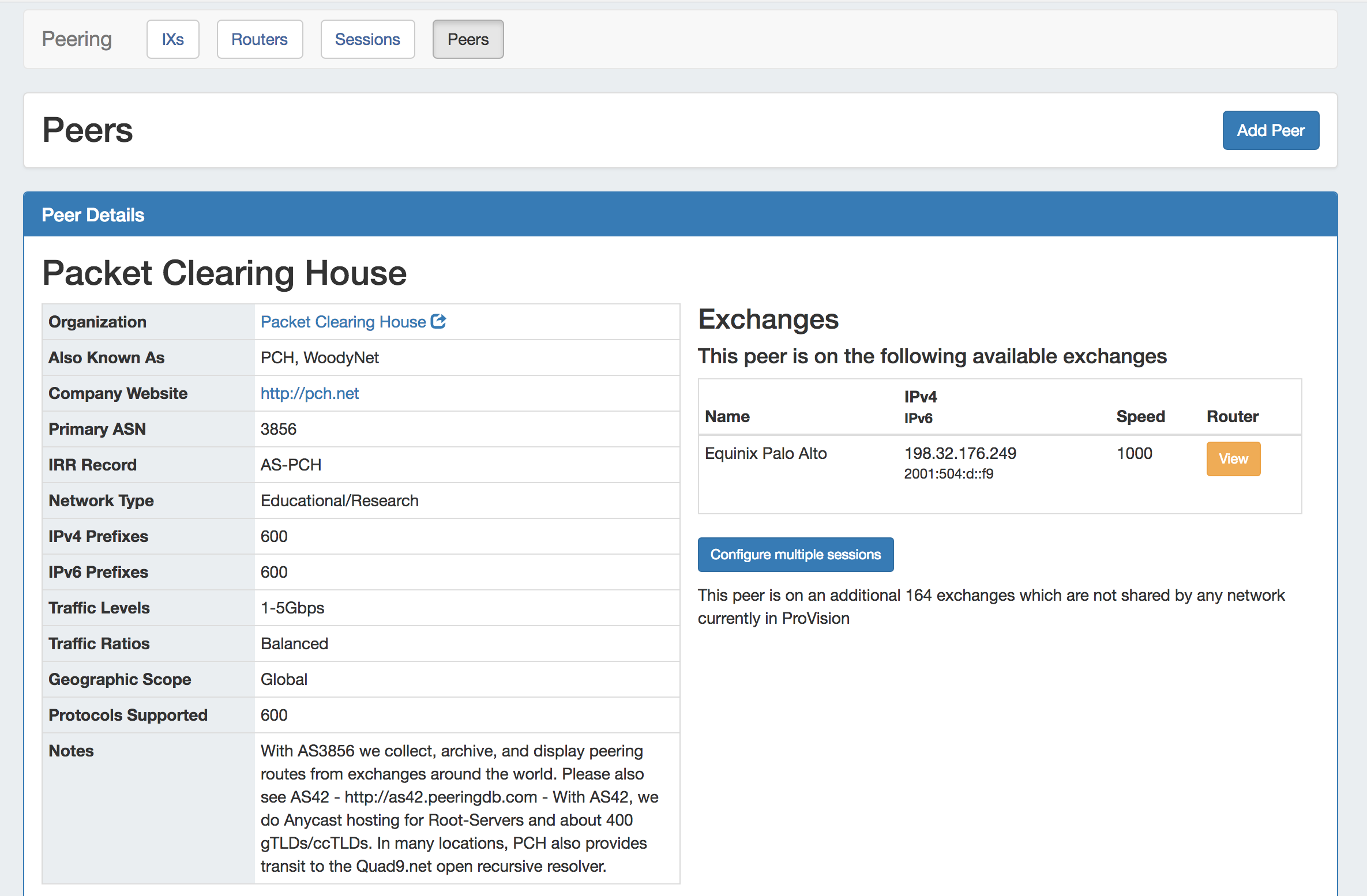

Clicking on a peer in the list will open the Peer Details page.

From here, additional Peers may be added, or you can view details for the existing peer, including available exchanges and what routers you have available on that exchange.

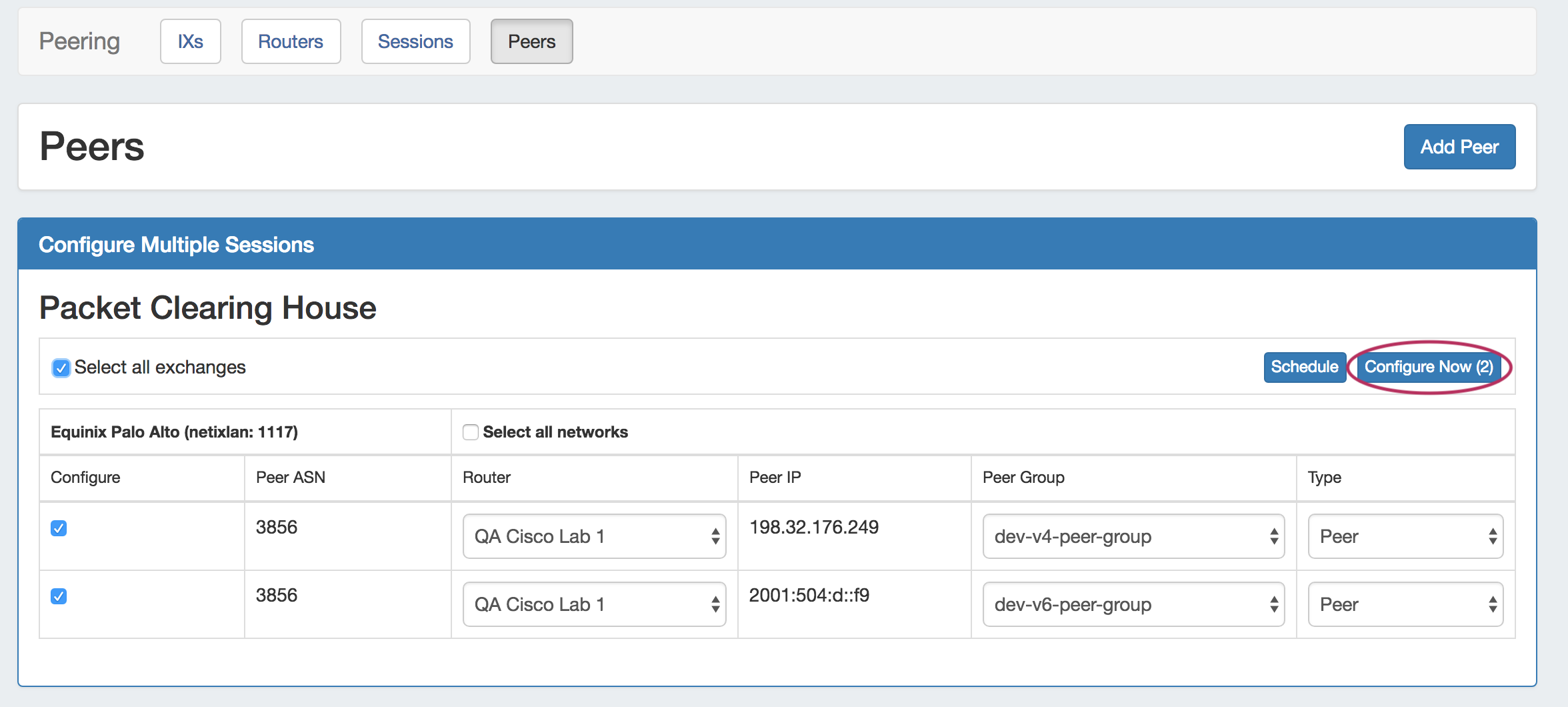

You may also choose to "Configure Multiple Sessions" - clicking the configure multiple buttons opens a page where you may select and set up multiple sessions for that peer, and then choose to either "Configure Now" or Schedule the config to run later via the Scheduler Tab.

 See Managing Peers for additional information.

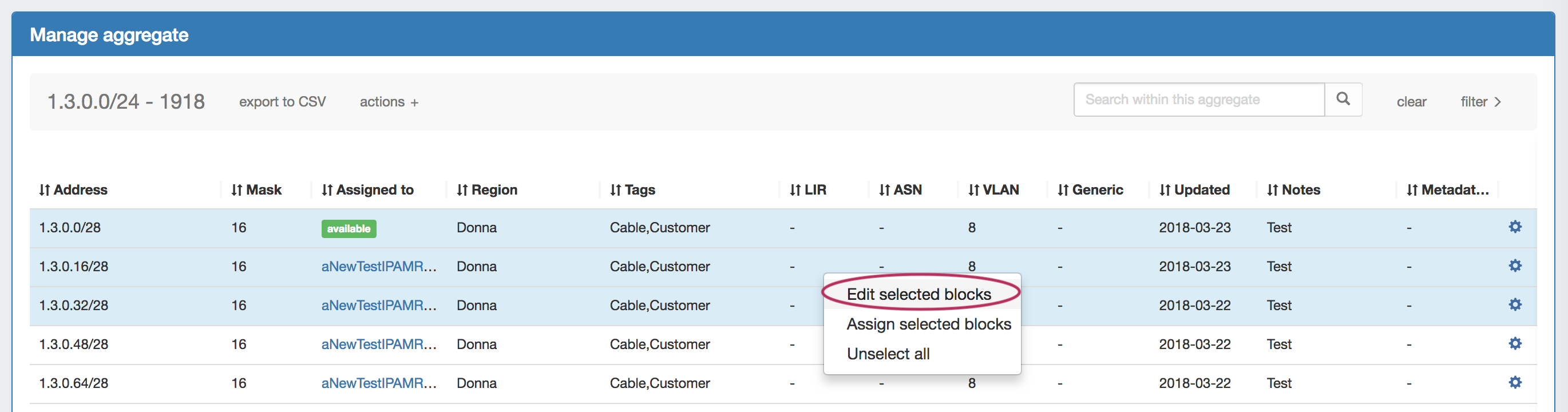

To select multple blocks to edit, hold down the shift key and click on the blocks you wish to edit - the selected blocks will be highlighted. Right click anywhere in the blue highlighted area, and select "Edit selected blocks".

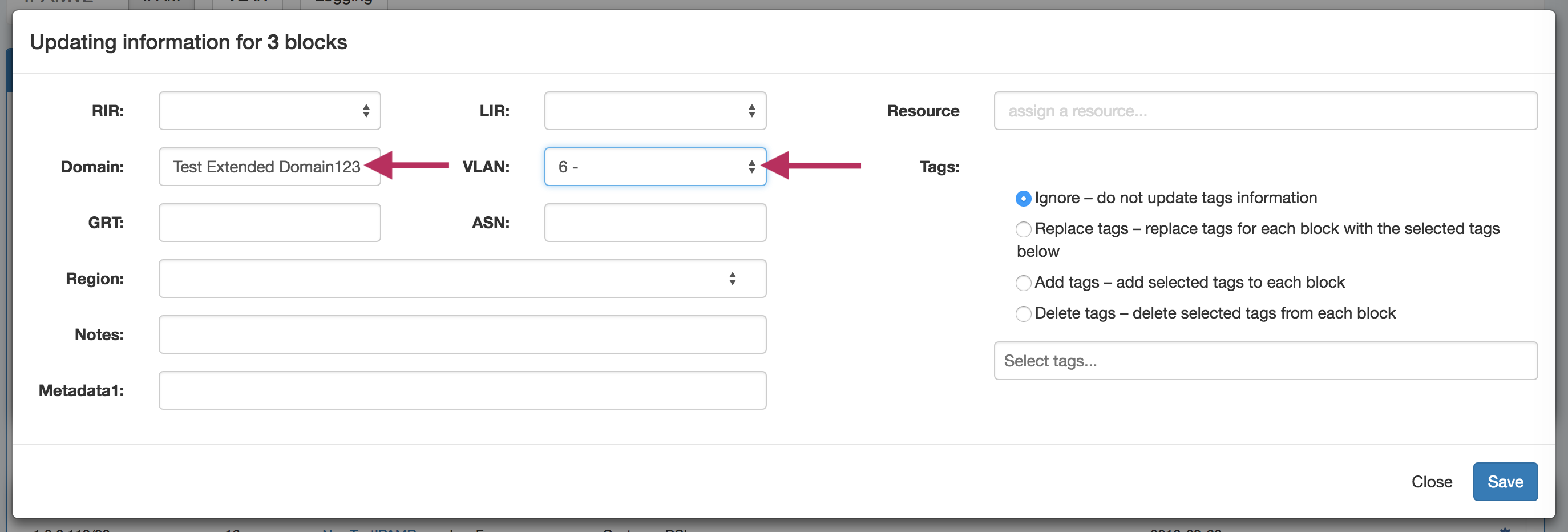

The "Edit Block" modal window will pop up for the selected block(s). Edit the domain by clicking in or typing in the domain search box, and select the desired Domain.

Then, select the VLAN for the blocks from the enabled VLAN list. When done, click "Save".

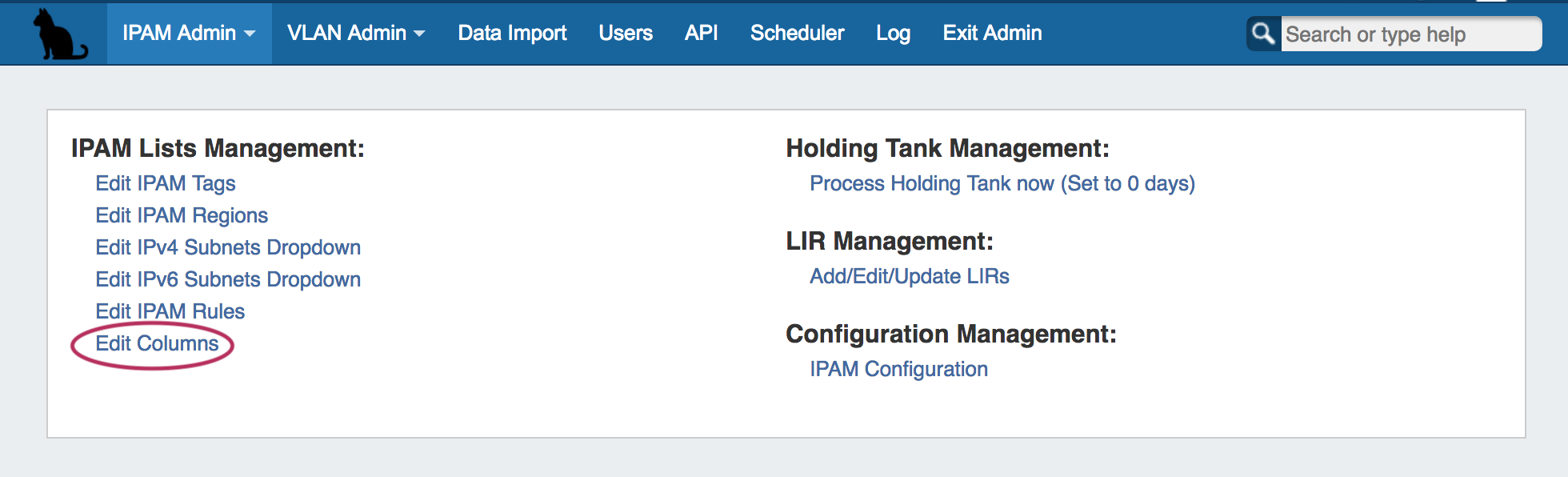

To access "Edit Columns", you must be logged in as a user with Admin access. From the Admin area of ProVision, go to the IPAM Admin tab, then click "Edit Columns" under IPAM Lists Management.

Eleven default ProVision fields and ten user-defined "Metadata" fields are available for customization.

From here:

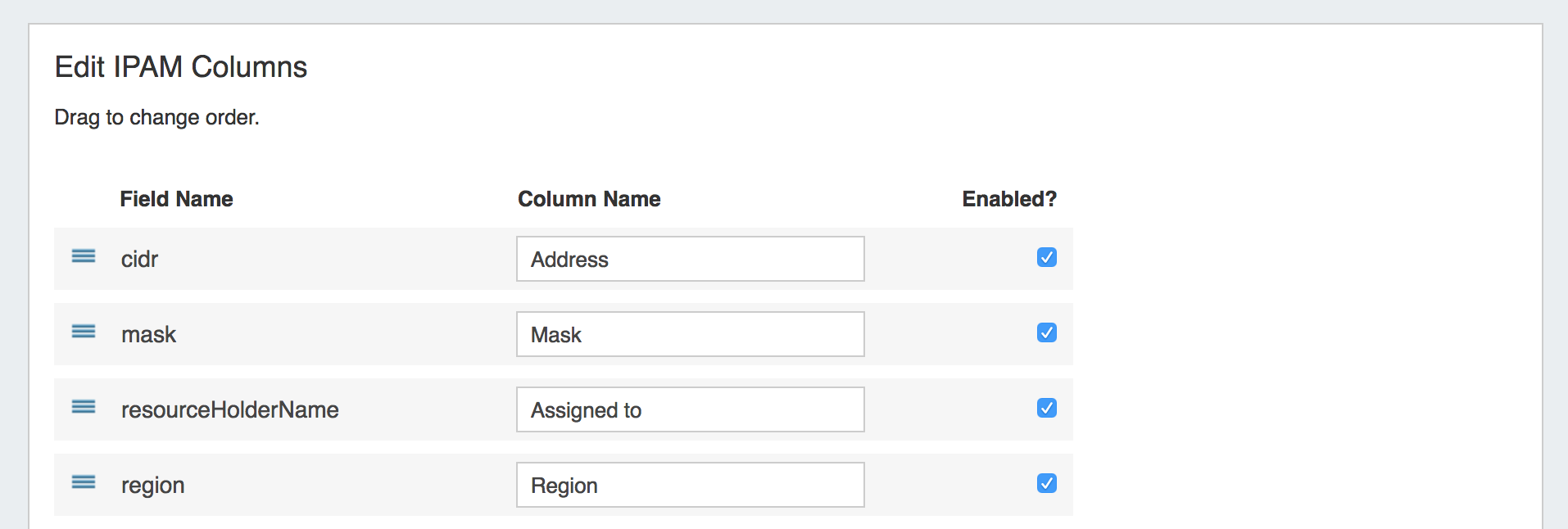

To edit a column name, simply type your changes in to the text box. and click the "Update" button.

To reorder the columns, click and hold on the "list" icon (three lines) to the left of the subet, then drag to the desired location in the list and release.

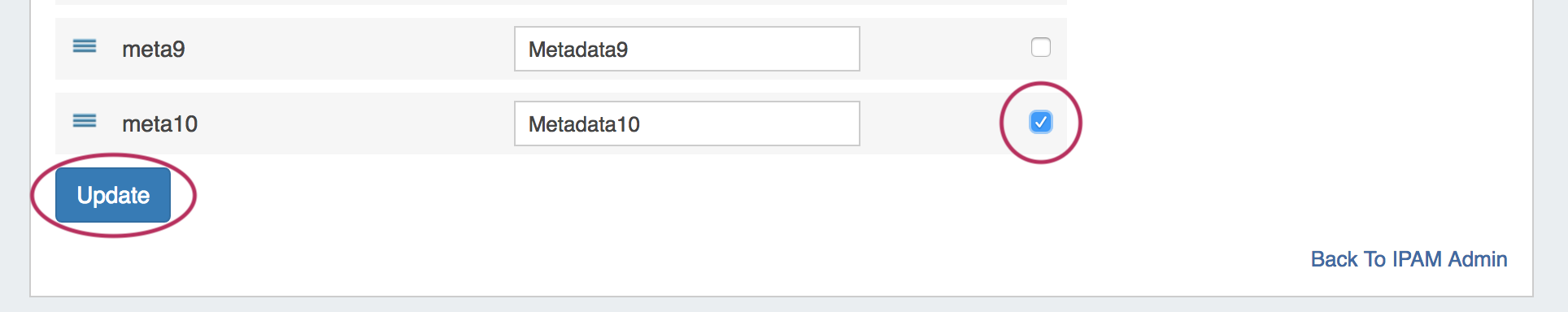

To toggle visibility for a column, click in the checkmark field to the right of the column name to enable / disable visibility. This affects the columns that show in both IPAM Manage and the IPAM Gadget.

When complete, be sure to click on the "Update" button to save your changes.

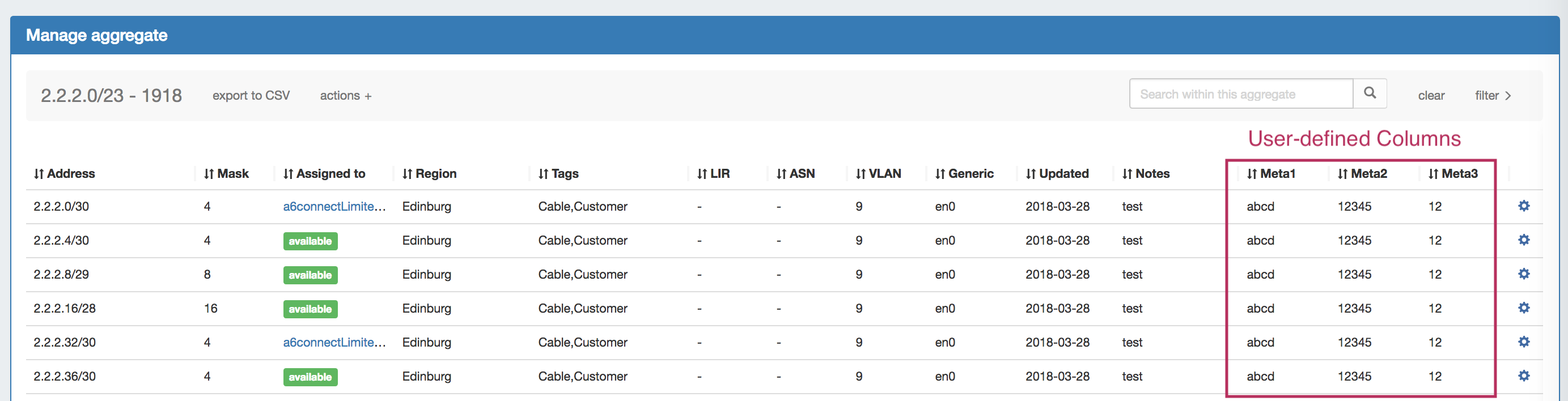

Once changes are saved, the enabled columns will show in IPAM Manage Aggregate screen and the IPAM Gadget "IP Blocks" List.

See IPAM Parameters for additional information.

Enabling the IPAMv2 Gadget:

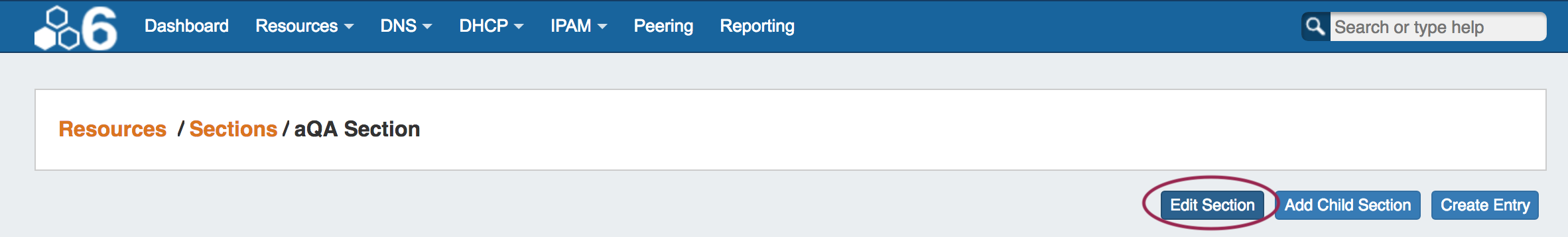

To Enable the IPAMv2 Gadget, navigate to the Resources Tab -> Sections subtab, and click on the Section you wish to add the IPAMv2 Gadget to, and Click "Edit Section".

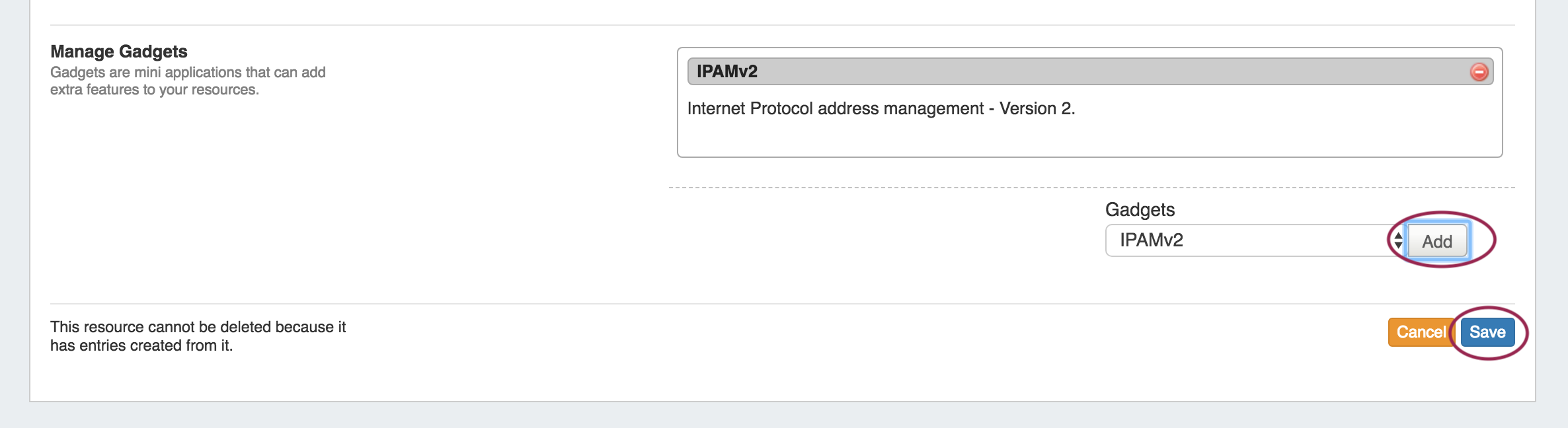

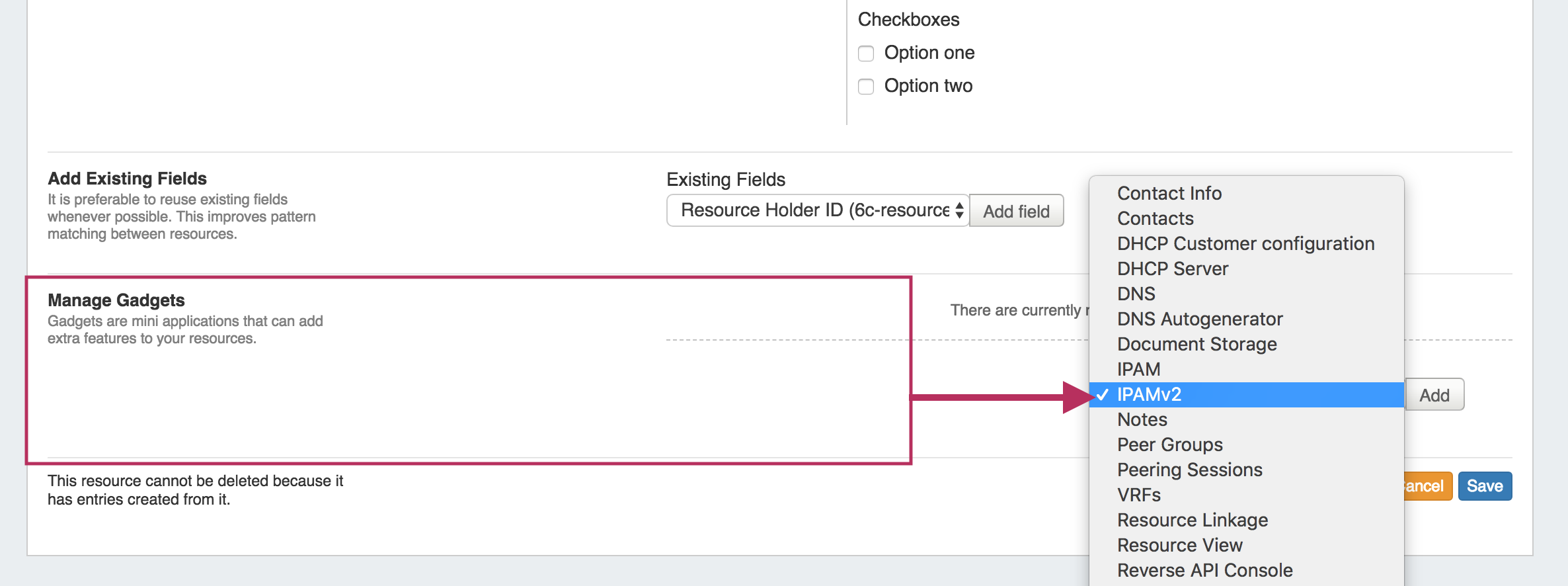

In the "Edit Section page, navigate to "Manage Gadgets", then select "IPAMv2" from the Gadget dropdown list. (Note: the previous IPAM gadget - "IPAM" is still available, and may be concurrently placed in the same Section with the IPAMv2 Gadget).

Click the "Add" Button, and then Save your changes.

The IPAMv2 Gadget will now display on Resource Entry pages under the edited Section.

Direct Assign:

Simple Direct Assign:

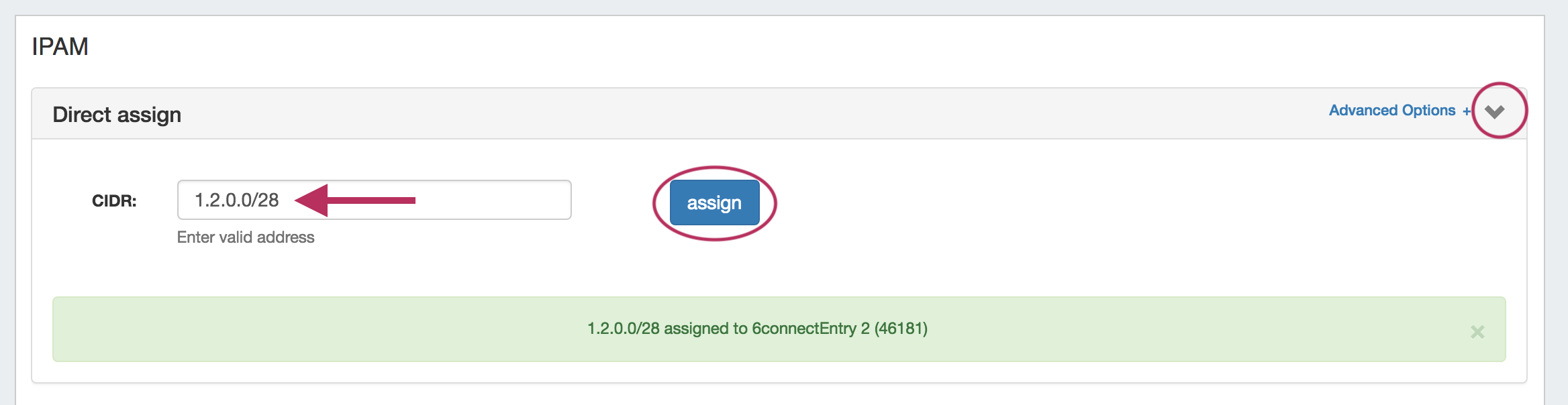

Expand the "Direct Assign" module of the IPAMv2 Gadget by clicking the "Expand" arrow on the right side of the header.

Type the desired CIDR to assign in the CIDR input box, then click "Assign". A message will appear to confirm success, or provide details on an error.

Advanced Direct Assign:

In some cases, you make need the ability to further specify a block to direct assign - such as if you have duplicate 1918 blocks. The "Advanced Options" filters allow for further detail to be provided to ensure ProVision assigns the specific block that is intended.

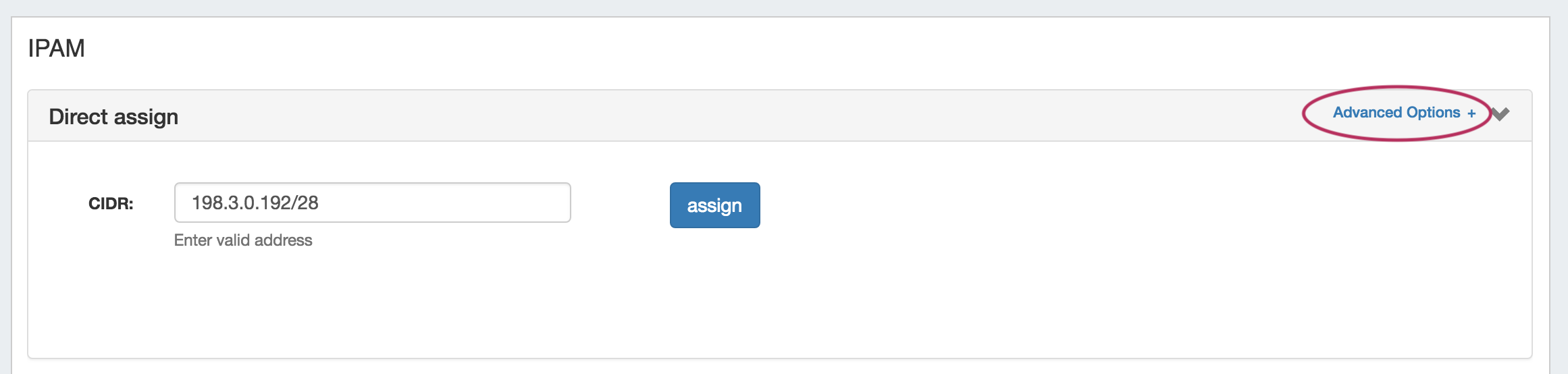

Expand the "Advanced Options + " link to the right of the "Direct Assign" module header.

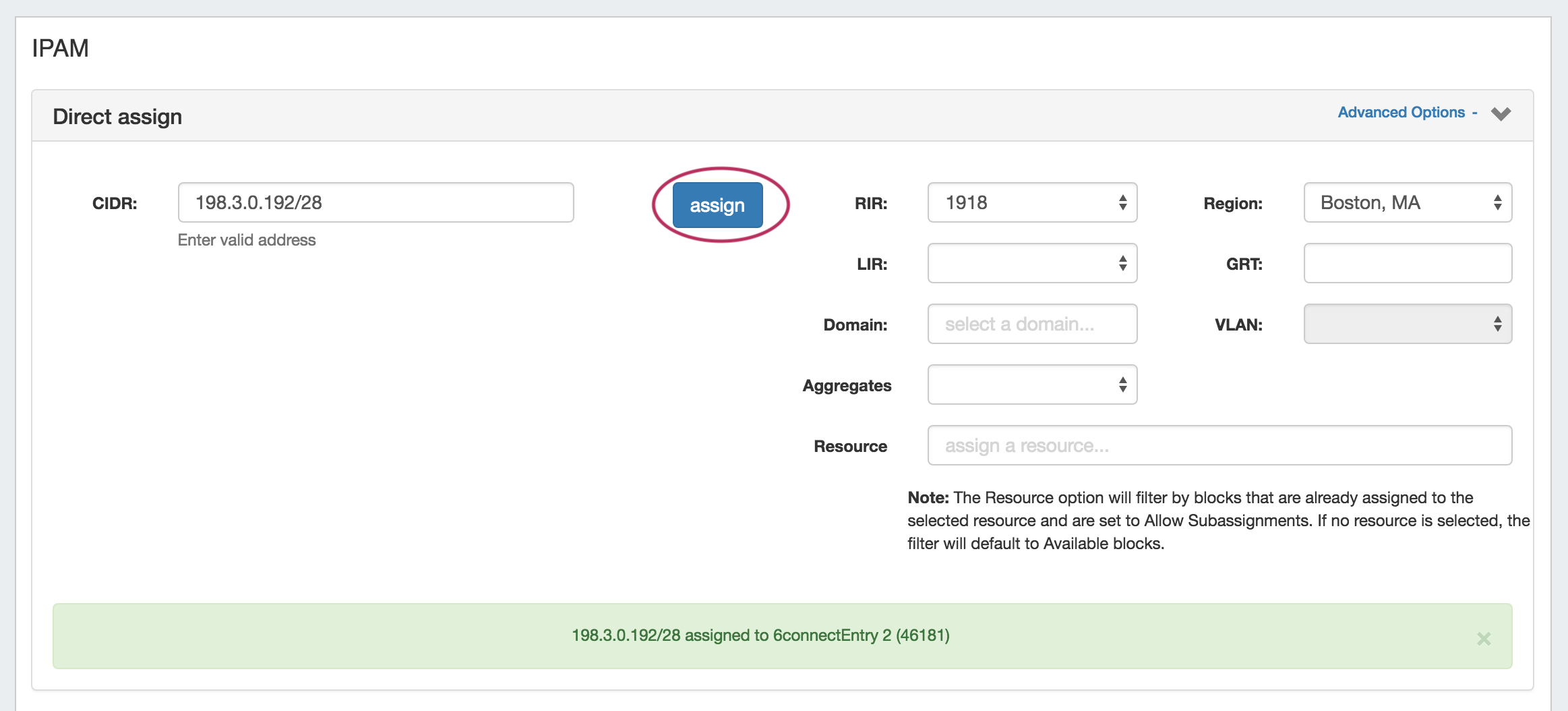

Then, add in the desired CIDR, and set your additional filter criteria, such as RIR, region, LIR, VLAN, and so forth. When done, hit "Assign".

Smart Assign / Smart Browse:

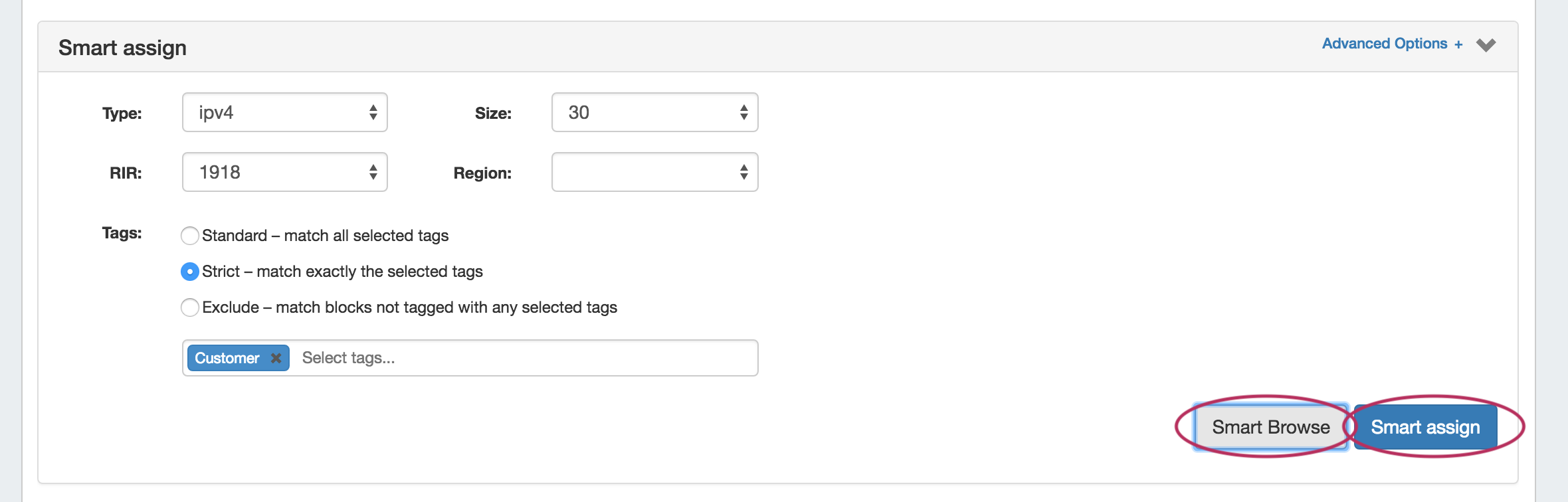

Expand the "Smart Assign" module in the IPAMv2 by clicking the expansion arrow in the right side of the Smart Assign header.

For a basic assignment, enter at least the IP type, RIR, and block size.

IP Tag filters are optional. IP Tag filters exist in three modes:

Standard - checks to see if the selected tag is associated with the block

Strict: limits results to blocks with exactly the selected tag(s)

Exclude - blocks without the selected tag(s)

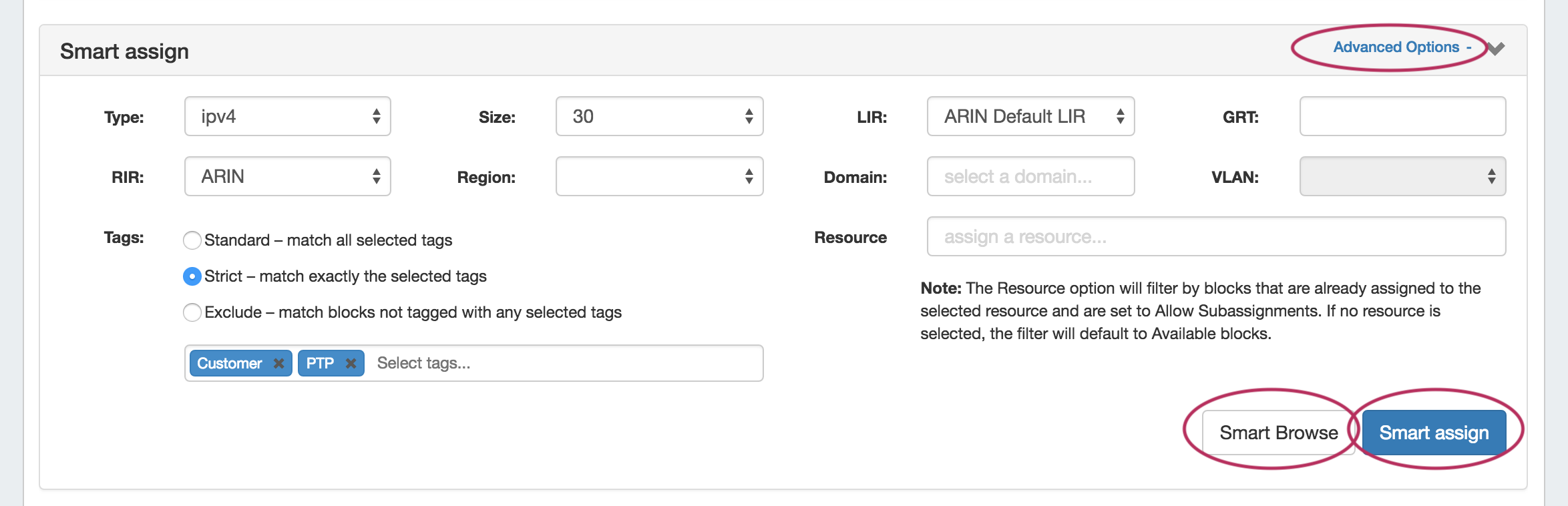

For Advanced Options, Click the "Advanced Options +" expansion link in the top right of the header. Additional filter criteria will be available to apply to both Smart Browse and Smart Assign.

Then click "Smart Browse" or "Smart Assign".

For Smart Assign, you will receive a message indicating a successful assignment, or information regarding an error. If no blocks are available meeting the criteria, the message will say so. In this case, try removing one or more of your filter criteria and try again.

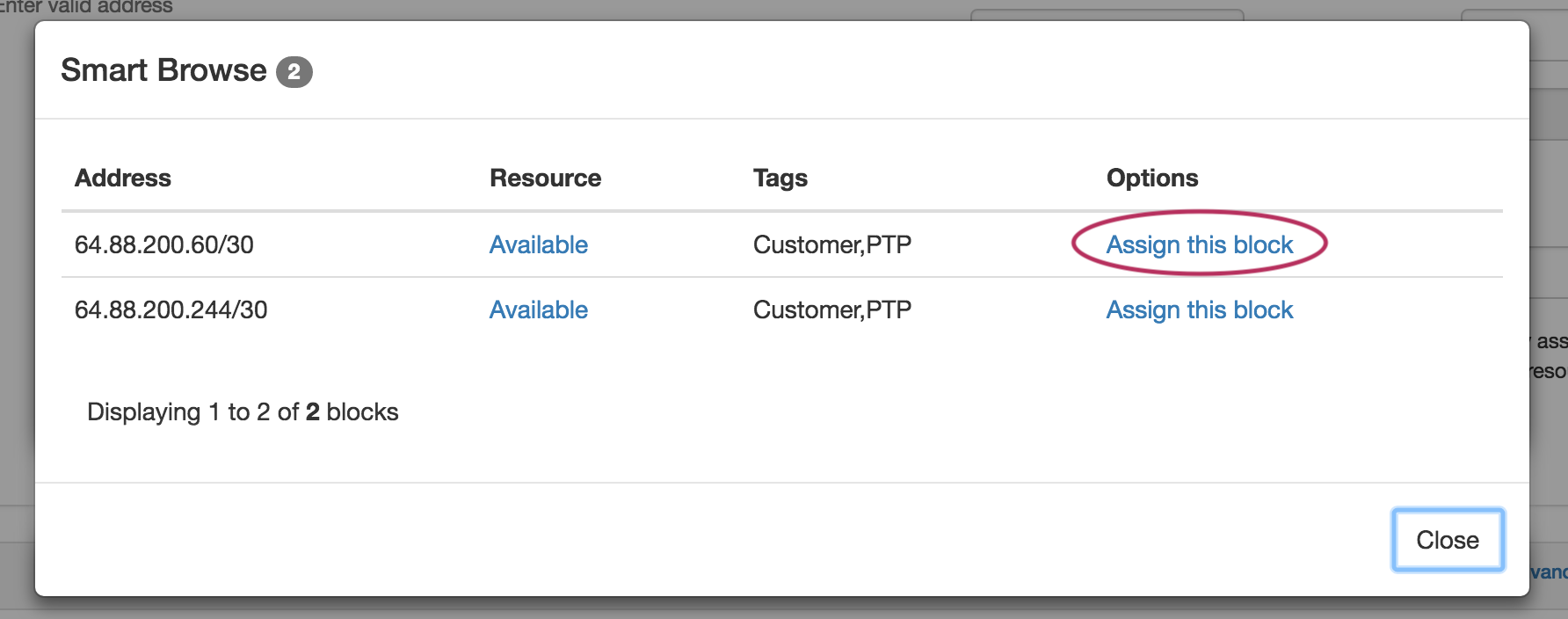

For Smart Browse, a screen will pop up showing blocks meeting your criteria. Browse to the block you want to assign, and click either "Assign this block", or "Assign from this block"(splits a larger block down).

Successful assignments will be added to the "IP Blocks" list in the IPAMv2 Gadget, and are able to be managed in the IPAM Gadget, IPAMv2 Gadget, or IPAM Manage Screen.

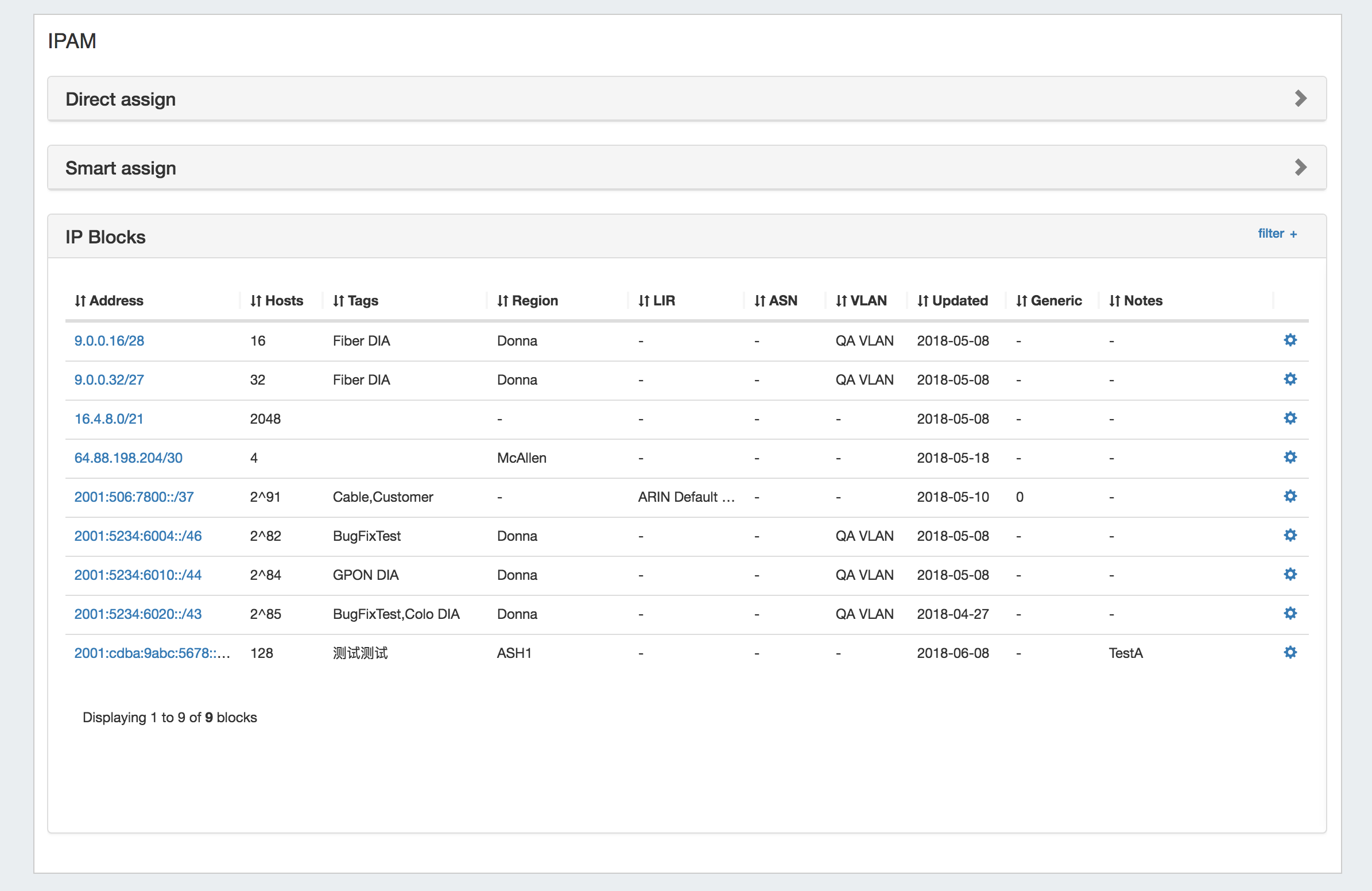

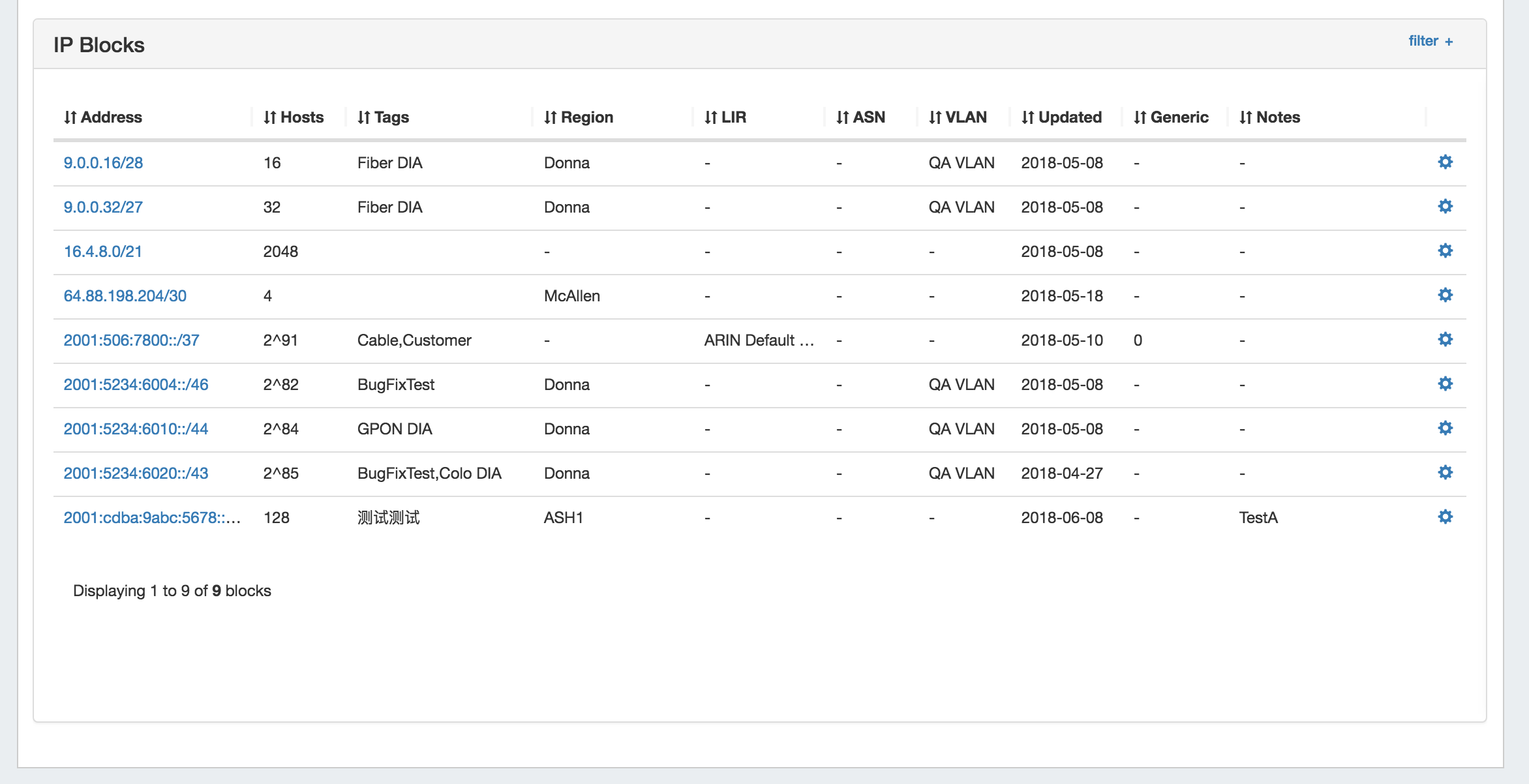

Managing IP Blocks in the IPAMv2 Gadget:

Managing IP blocks in the IPAMv2 Gadget remains similar to the previous IPAM Gadget, with minor updates:

The IP Block list may be sorted by field! Just click the column name to toggle between ascending / descending by that field.

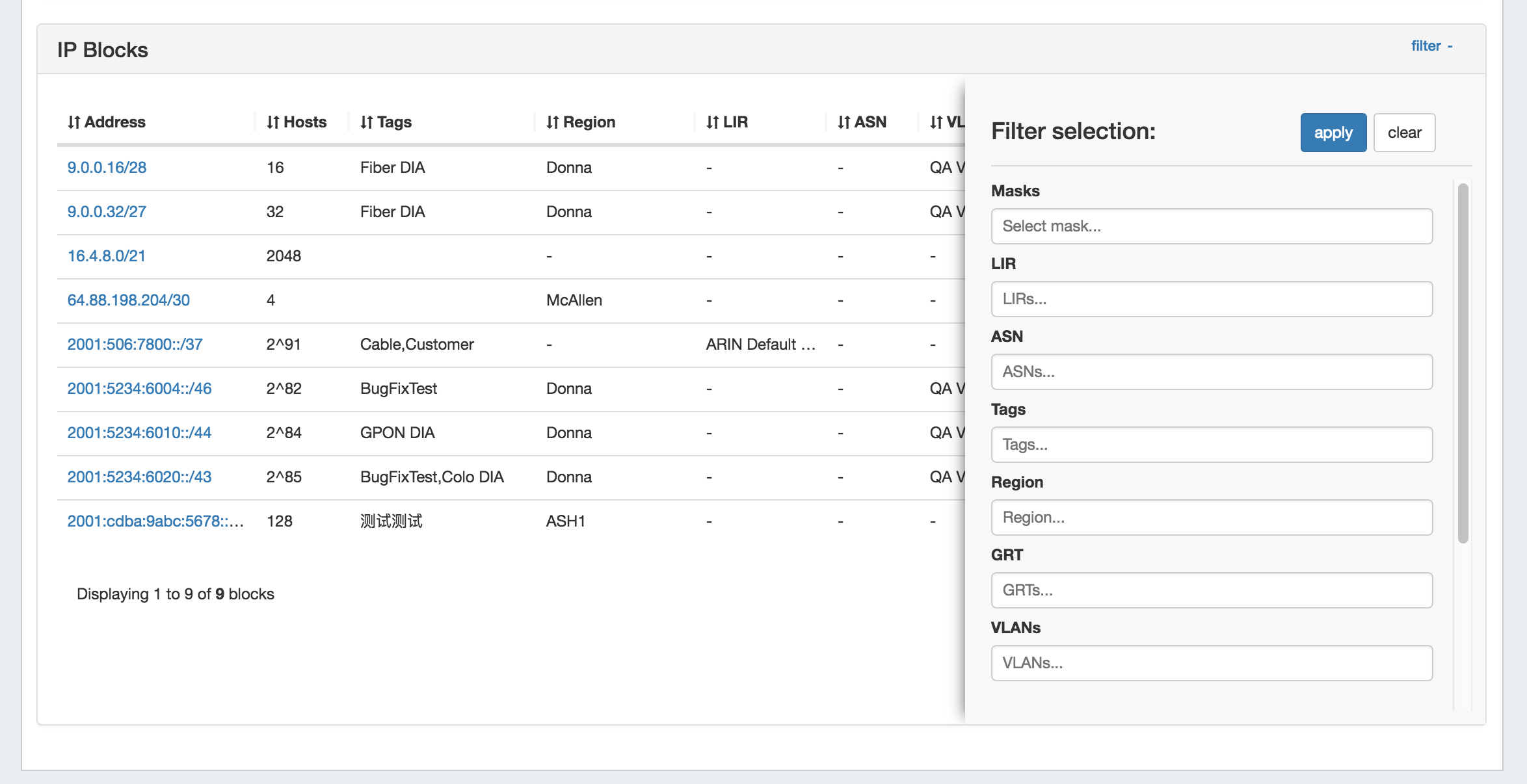

IP Blocks may now be filtered! Click on the "filter +" link in the top right header to display the filter options. Type in or search for the term under your desired field, and hit "Apply". When done, click "clear". To hide the filter flyout, just click the "filter -" link again.

To edit a block, you may either click on the Action Menu (now a Gear Icon), or double click on the row of the block you wish to edit.

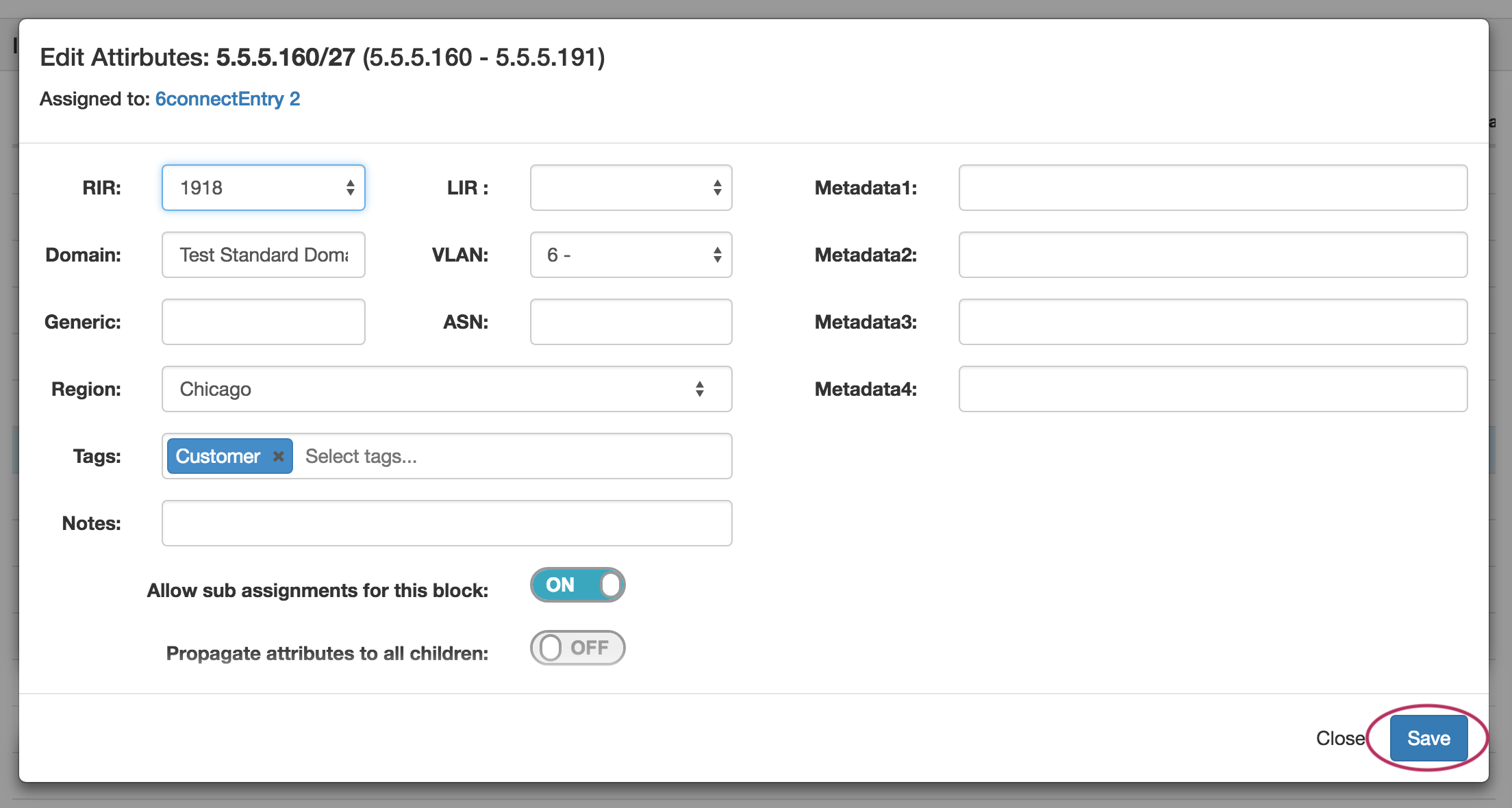

"Edit Attributes" supports additional IPAM attributes, including RIR, LIR, ASN, Propagate attributes to children, and up to ten user-defined metadata fields as set in IP Admin->Edit Columns. Just add in your custom data, and click "Save"!

Changes to attribute field name and visibility (as set up IP Admin-> Edit columns) are reflected in the "Edit Attributes" modal.

Click-to-create-reverse-zones is back! Single left click on the Block address to automatically generate a reverse DNS zone for that block.

The IP Blocks list now includes pagination. Up to 15 blocks are displayed per-page.

Columns widths are now manually adjustable, and side-scrolling is automatically enabled when additional columns exist out of view range.

IPAMv2 Gadget column customization is accessed via the IPAM Admin area of ProVision - you must be logged in as a user with Admin access.

From the Admin area of ProVision, go to the IPAM Admin tab, then click "Edit Columns" under IPAM Lists Management.

Eleven default ProVision fields and ten user-defined "Metadata" fields are available for customization.

From here:

To edit a column name, simply type your changes in to the text box. and click the "Update" button.

To reorder the columns, click and hold on the "list" icon (three lines) to the left of the subet, then drag to the desired location in the list and release.

To enable / toggle visibility for a column, click in the checkmark field to the right of the column name to enable / disable visibility. This affects the columns that show in both IPAM Manage and the IPAMv2 Gadget.

When complete, be sure to click on the "Update" button to save your changes.

Once changes are saved, the enabled columns and their changes will be visible in the IPAMv2 Gadget.

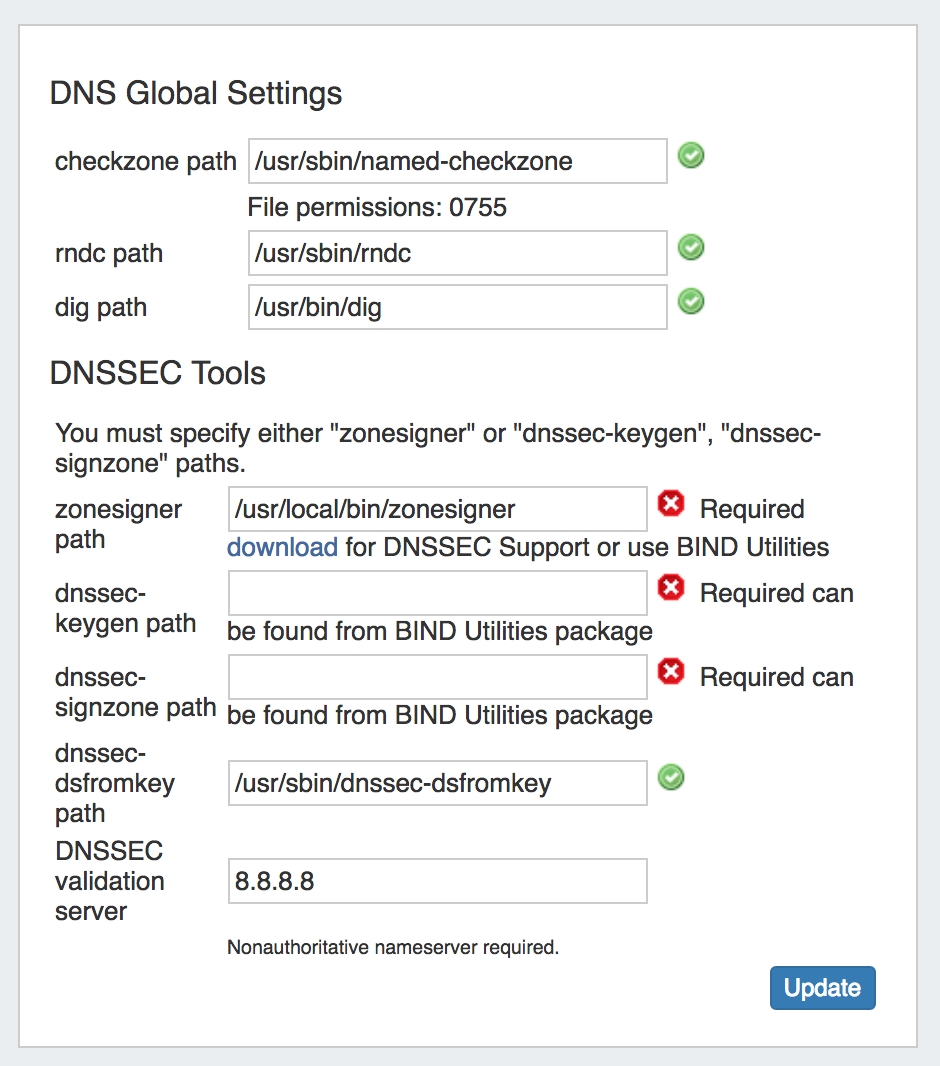

Field Details:

zonesigner path : Enter the zonesigner path that will be used for DNS.  Zonesigner is required if dnssec-keygen and dnssec-signzone are not set.

dnssec-keygen path: Enter the keygen path.  Required if zonesigner is not set.

dnssec-signzone path: Enter the signzone path. Required if zonesigner is not set.

dnssec-dsfromkey path : Enter the dnssec-dsfromkey  path that will be used for DNS. Required in all cases.

DNSSEC validation server: Enter the IP of the nonauthoritative DNSSEC validation nameserver. Optional.

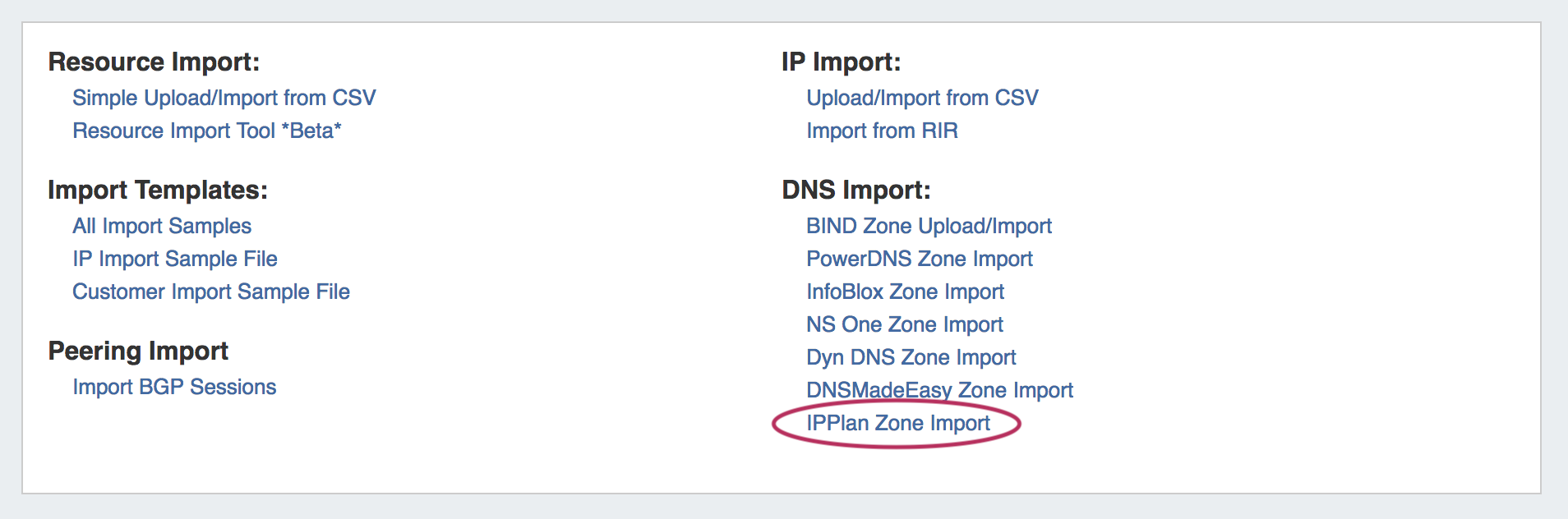

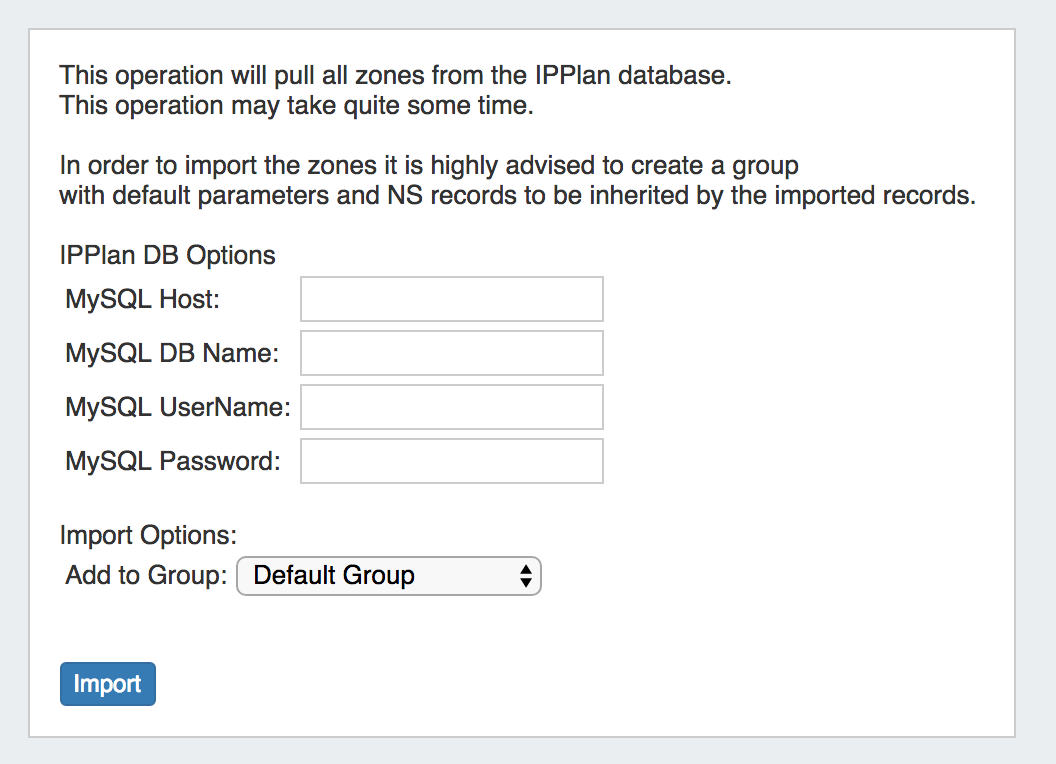

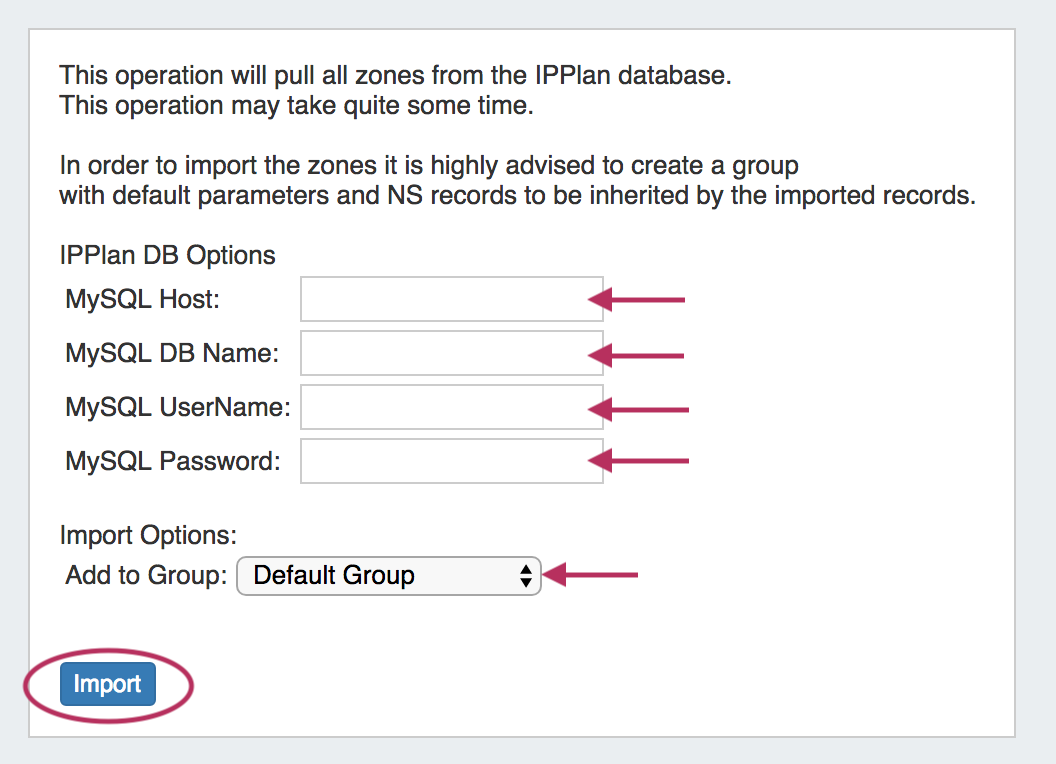

To import zones from a IPPlan MySQL database, navigate to the Admin area Data Import Tab, and click on "IPPlan Zone Import".

From there, enter the IPPLAN DB Options - Host, Database Name, MySQL Username, and MySQL Password, then select the desired DNS Group to add the zones under.

When done, click the "Import" button.
For more information, see IPPlan Zone Import.
