RADIUS Authentication

ProVision supports 6connect vendor-specific attributes (VSAs) for use with RADIUS authentication.

To use these attributes, you must perform the following procedures:

Setting Up Radius Authentication

Add the 6connect VSA to the Radius Installation

To use the 6connect VSA, the attributes must be defined on the RADIUS server. Add the following RADIUS dictionary file to your RADIUS server and name it dictionary.6connect:

ProVision 4.0 and greater:

VENDOR 6connect 36009

BEGIN-VENDOR 6connect

ATTRIBUTE 6connect_user_group 10 string
#A 6connect User Group to which this user belongs.

END-VENDOR 6connect

Make sure to add the following to the primary dictionary file: $INCLUDE dictionary.6connect

Configure Radius Accounts

On the Radius server, configure the user accounts that will have access to the ProVision system.

An example of a ProVision account configuration for the user file on a Freeradius system for ProVision 4.0 and greater:

Example: To add a new radius user, edit the 'users' file found at /etc/raddb/users and add a block like:

Setting up a RADIUS account

bobber Cleartext-Password := "hello"
6connect_user_group = "Global Admins,Group 2,Group 1,Group Nonexistant"

The Radius server must be restarted every time you add, remove, or modify users. To restart the Radius server, use this command:

/etc/init.d/radiusd restart

Note on RADIUS attributes

There are many Radius attributes, but '6connect_user_group' is the one used by 6connect ProVision. It is a comma-separated list of all the group names that the user belongs to.

Test Radius Accounts

For ProVision 4.0 and higher, test and response should look like the following:

To query a radius server, use the following command format:

radtest [USERNAME] [USERPASSWORD] [SERVER] 0 [SECRET]

Example:

radtest bobber hello 208.39.140.106 0 6connect

A successful response will look like this:

Sending Access-Request of id 198 to 208.39.140.106 port 1812
User-Name = "bobber"
User-Password = "hello"
NAS-IP-Address = 67.221.240.229
NAS-Port = 0
Message-Authenticator = 0x00000000000000000000000000000000
rad_recv: Access-Accept packet from host 208.39.104.106 port 1812, id=198, length=69
Attr-10 = 0x476c6f62616c2041646d696e732c47726f757020322c47726f757020312c47726f7570204e6f6e6578697374616e74

A rejected response may look like this:

Sending Access-Request of id 68 to 208.39.140.106 port 1812
User-Name = "bobberbro"
User-Password = "hello"
NAS-IP-Address = 67.221.240.229
NAS-Port = 0
Message-Authenticator = 0x00000000000000000000000000000000
rad_recv: Access-Reject packet from host 208.39.104.106 port 1812, id=68, length=20

Configure ProVision for Radius Authentication

To configure the use of Radius authentication with ProVision, follow the steps below:

Log into 6connect ProVision
Go to Settings → Admin -> Authentication

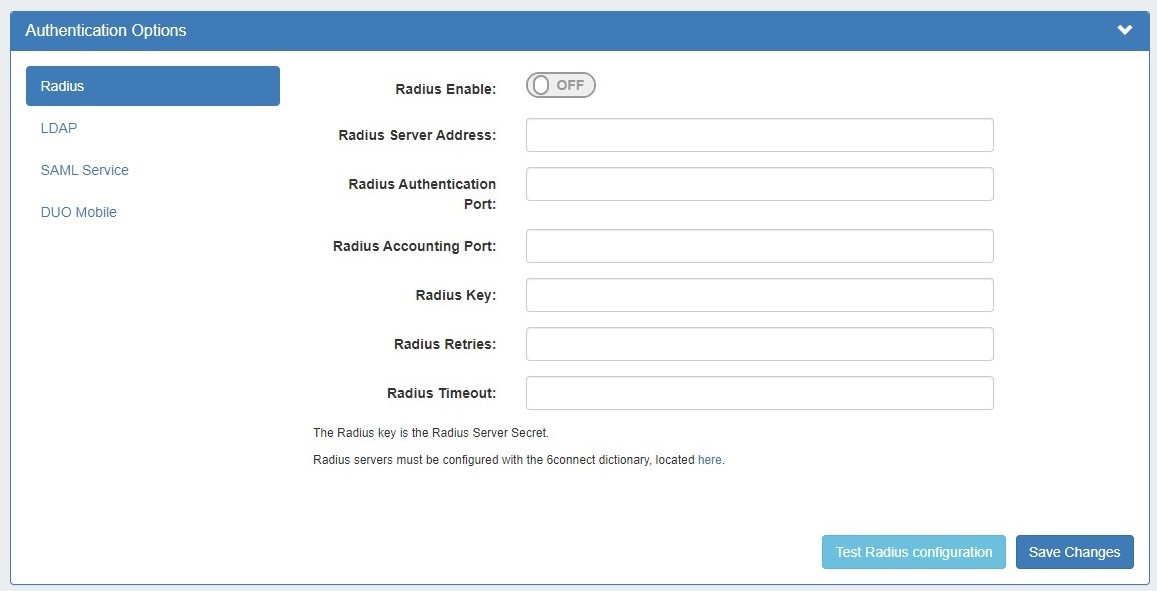

Select the "Radius" tab under "Authentication Options"
Ensure that Radius functions are available. Radius functions are always available on 6connect cloud instances. Note: Radius functions are available on VM Images and Local Installations only if the relevant PHP Pear Radius Libraries have been installed. An error message will be visible if the PHP extension is not installed.
Move the Radius Enable selector to the "ON" position.
Fill in the hostname or ip address, authentication ports, accounting port, and shared Radius key as specified.

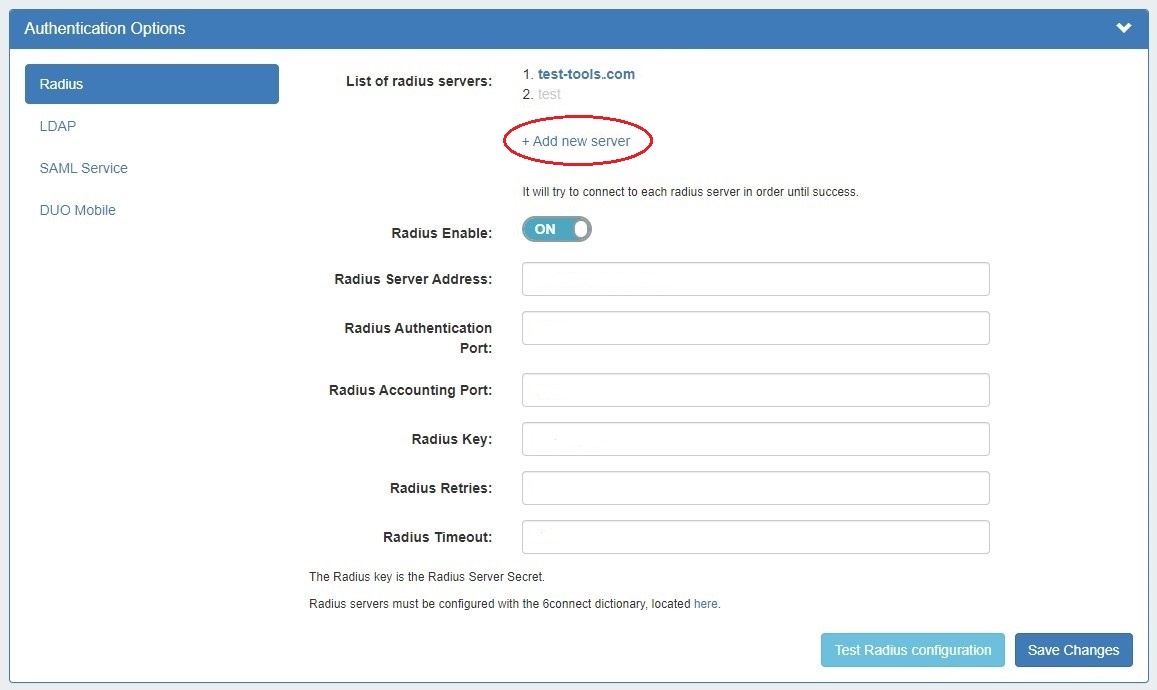

Once at least one Radius server has been added, a list will appear at the top of the Radius module. Add an additional Radius server by clicking "Add new server".

ProVision will try to connect to each radius server listed in the order listed, until a success is returned. Disabled servers will display in grey, and the currently selected server will display in bold.

Setting default login authentication options

In the login screen, you would select the authentication method from the dropdown. If you like, you can set the default login option in the following way:

Go to the /data/globals.php and open in vi (or other editor). Add in the following text as the last line of the file (before the closing ?>)

define('DEFAULT_LOGIN_TYPE', 'radius');

Acceptable values are "local", "radius", "ldap" and "saml". If this line is not present in globals.php, the default option is "local".

Add or Update Radius Authentication Settings (Local Install Only)

Authentication options are accessed by clicking the "Authentication" sub-tab at the top of the Admin Settings page.

Radius Enable: Move this selector to enable RADIUS functionality.
Radius Server Address: Set to the IP address of your radius server. If this is specified, it will force authentication over radius.
Radius Authentication Port: Set to the port for authentication. Default port is 1812
Radius Accounting Port: Set to the port for radius accounting. Default port is 1813
Radius Key: Set to the shared key of your radius server

Enter or update the desired settings.

To verify the settings connect, click "Test Radius Configuration". When done, click "Save Changes".
